Help#PAP2A - 25 Line Telephony Chassis
SKU: #PAP2A
Price: $899.95
Special Order
Product Highlights
- 19" Rack Mount Telephony Chassis
- 25 Pair Amp In / Out
Warranty & Terms
- 1 Year Warranty
- 30-Day Money Back Guarantee
- See Full Warranty / Ordering Terms
Product Details
25 Line Telephony Chassis
This is a special order / custom built item and is non-cancellable non-refundable. Contact us before ordering so we can make sure you're getting the right thing!

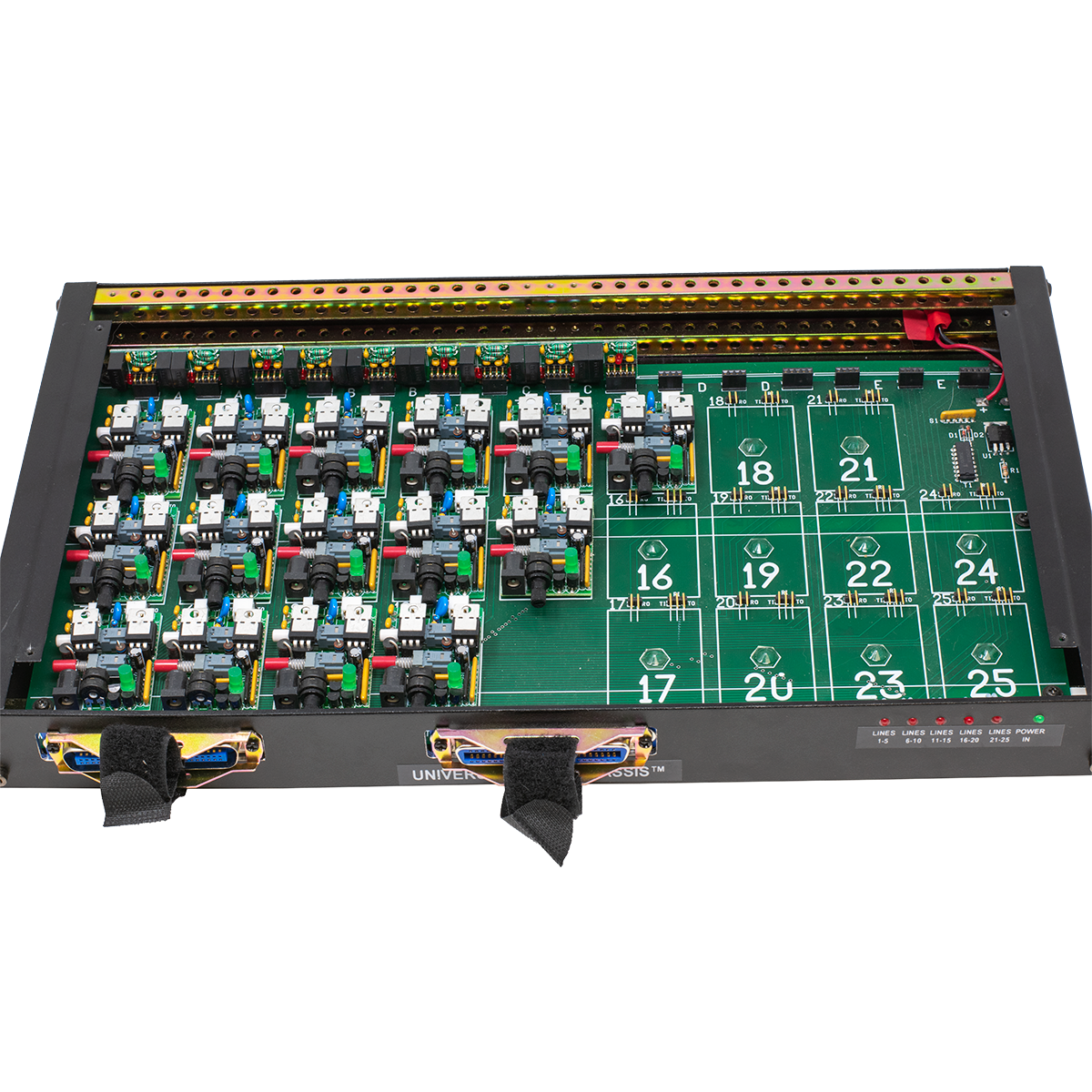

Holds 25:
- Loop Current Booster Plus Line Cards
- Long Line Volume Booster Line Cards
- Echo Stopper Line Cards
- Loop Current Regulator Line Cards
- Custom Made Line Cards (Contact Us!)
These Line Cards can be mixed, except that the Loop Current Booster Plus Line Cards are populated in increments of five lines.
Order a modular version of the Line Card you think you need to make sure it fixes your problem before you order a 25 Line Telephony Chassis and the Cards! We'll take an individual unit back if it doesn't help.

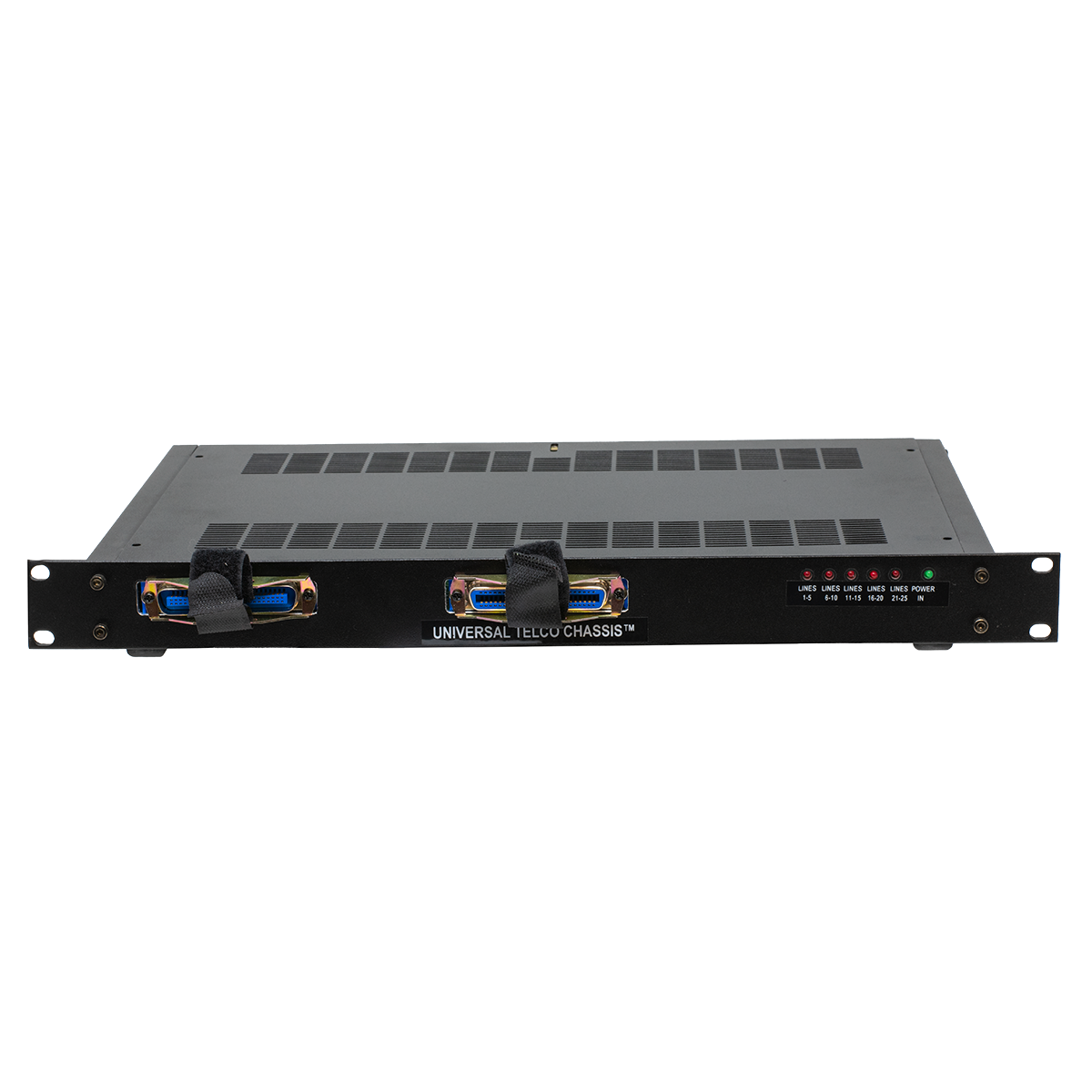

The 25 Line Telephony Chassis is a 19" rack mount chassis with 25 pair AMP connectors for input and output. The electronics are exactly the same as the Modular Versions of the Line Cards.
The 25 Line Telephony Chassis is placed in-series with up to 25 analog station ports or phone lines and the phone equipment.

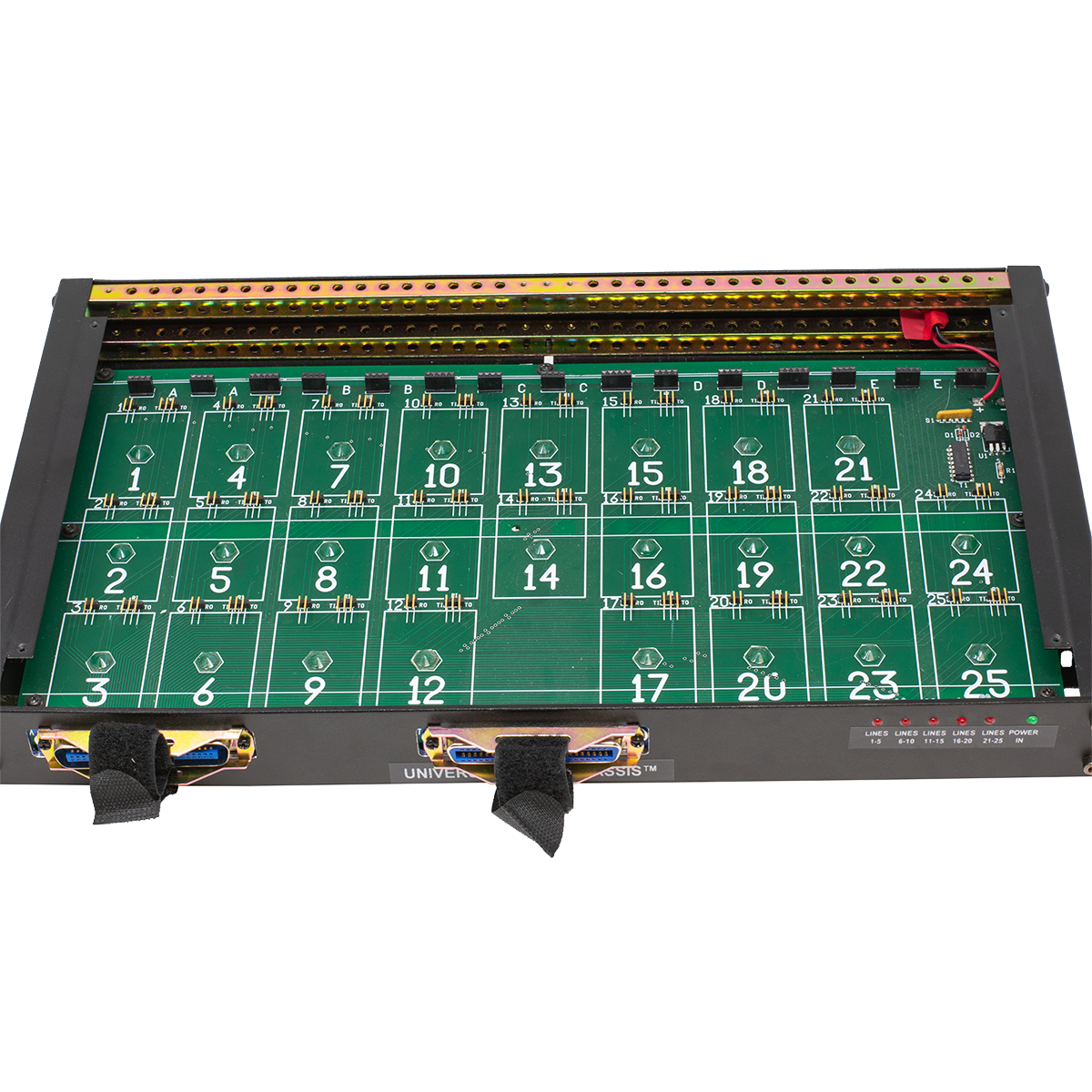

One of the Line Card types is needed in a particular line position for the line to go in and out of the chassis. Without a Line Card, there is no connection between the in and out AMP connectors.
Compatiblity:
All of the Versions of the Line Cards work with CPC (Calling Party Control, or Open Loop Disconnect), Caller ID, Message Waiting, Distinctive Ringing, Call Waiting, Call Transfer and 3-Way Calling.
The 25 Line Telephony Chassis and Line Cards work on:
- Telephone Lines
- Analog Station Ports
- Analog ISDN Ports
- T1 Channel Bank Ports
- VoIP Adapter Analog and Gateway Ports
- Any Device that provides a Port for an Analog Telephone
There are no switches on the 25 Line Telephony Chassis. There are LEDs to indicate power if you are using Loop Current Booster modules, which are the only type of Line Card that requires power.
Photo Gallery
