#MSC8J - TKM-6 Modular 8-Pin Switch Top Mount Ivory w/LED

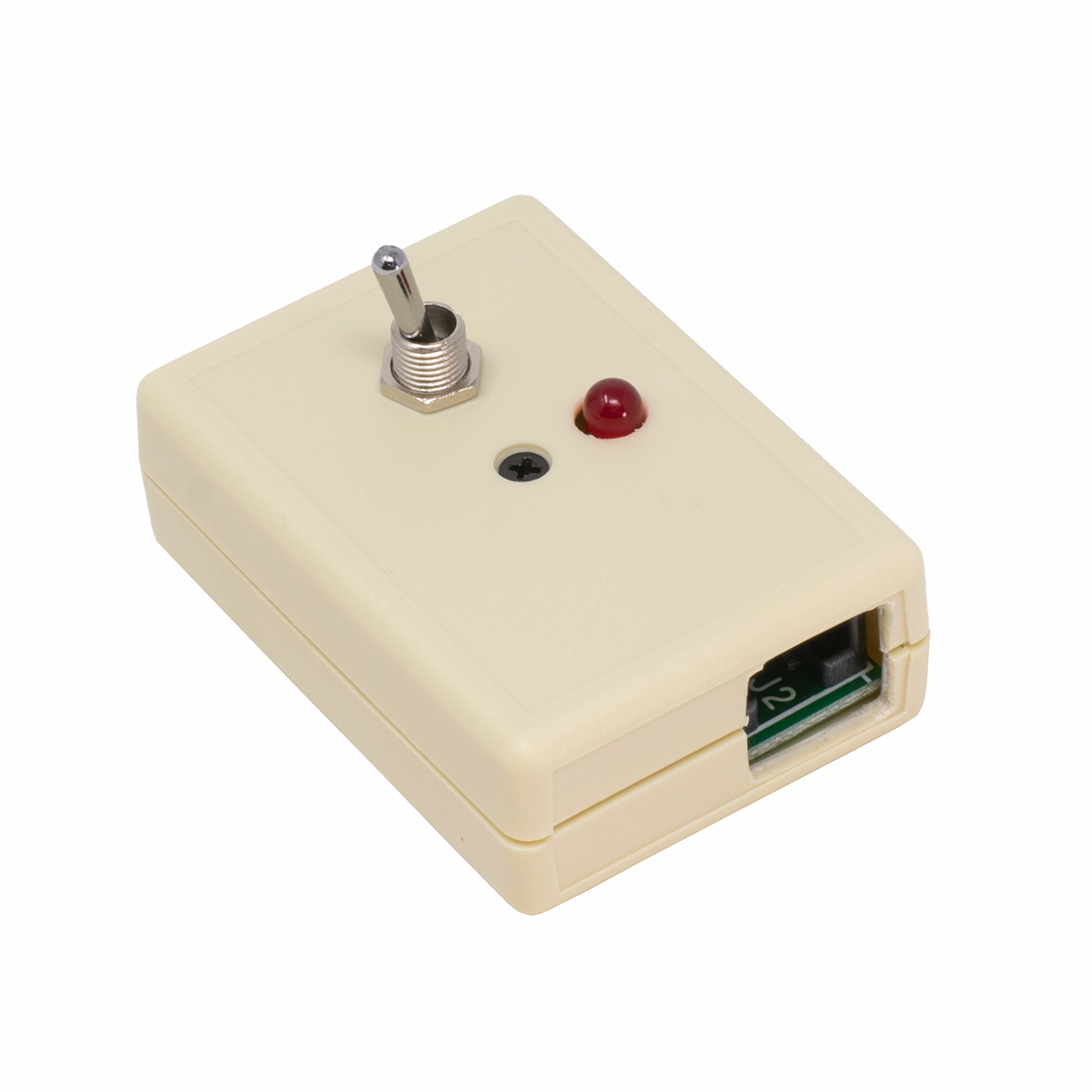

TKM-6 Modular 8-Pin Switch Top Mount Ivory w/LED (Top View)
TKM-6 Modular 8-Pin Switch Top Mount Ivory w/LED (Top View)

SKU: #MSC8J
Price: $19.95

In Stock

Product Highlights
  • Modular 8-Pin Connection
  • Top Mounted Switch
  • Ivory with LED
Warranty & Terms
Product Details

TKM-6 Modular 8-Pin Switch Top Mount Ivory with LED

These can solve lots of problems! Keep a few in your truck!

External wiring is attached using the 8-Pin 568B Mod Jack

Contains a High Brightness LED that can be viewed from the side as well as straight on.

Plug a regular RJ-45 Patch Cord (or make your own cord) into the 8 pin jack. It's wired 568B, using the first three pairs. Plug the Patch Cord into a regular 8 Pin Jack, or cut the cord and punch it down on a 66 or 110 block (see below). The White/Brown pair is used for the LED indicator.

TKM Modular Wiring Schematic with LED
TKM Modular Wiring Schematic with LED

Custom Configurations Available including push buttons and other components.
