#MSC8G - TKM-6 Modular 8-Pin Switch Front Mount Black

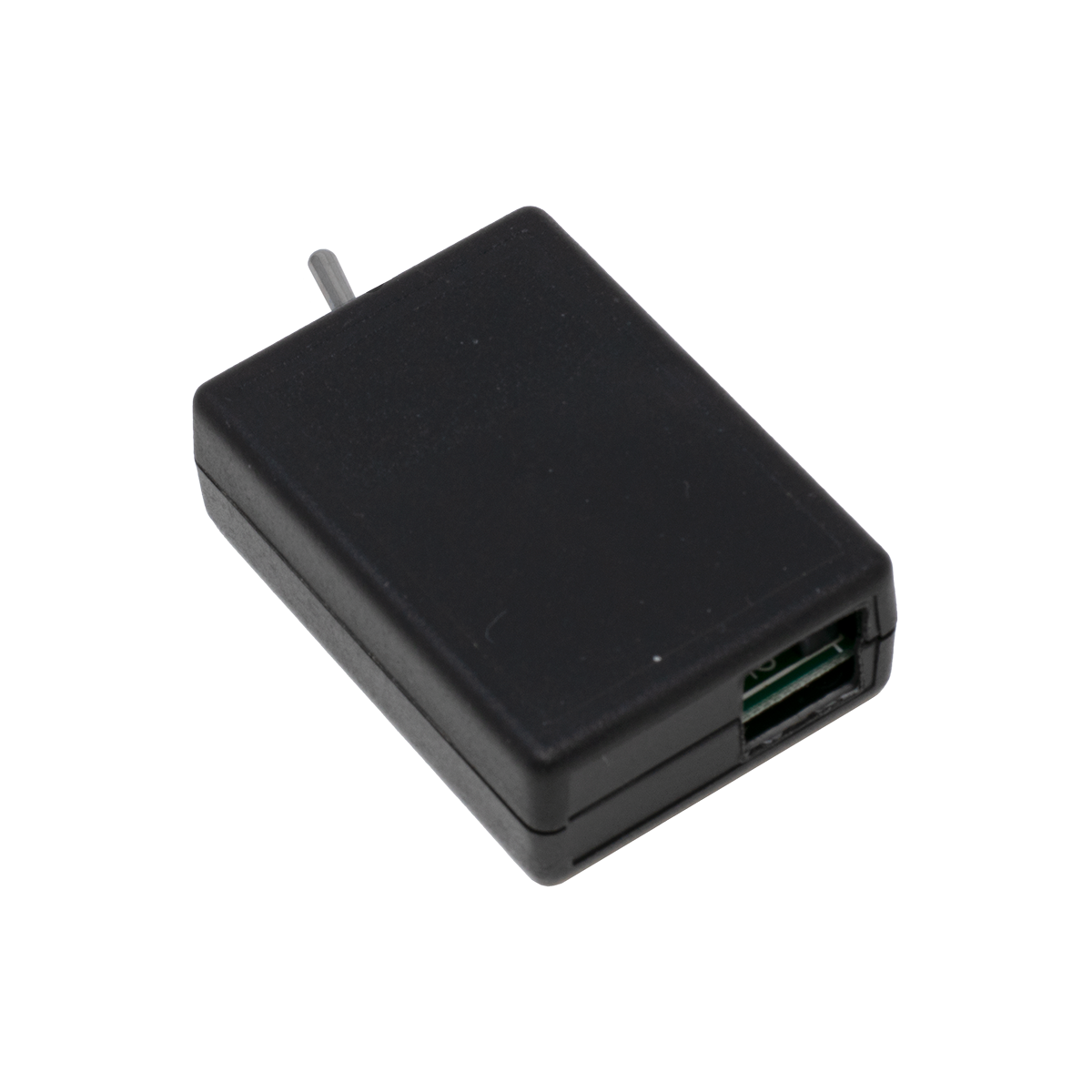

TKM-6 Modular 8-Pin Switch Front Mount Black (Top View)
TKM-6 Modular 8-Pin Switch Front Mount Black (Top View)

SKU: #MSC8G
Price: $16.95

In Stock

Product Highlights
  • Modular 8-Pin Connection
  • Front Mounted Switch
  • Black
Warranty & Terms
Product Details

TKM-6 Modular 8-Pin Switch Front Mount Black

These can solve lots of problems! Keep a few in your truck!

External wiring is attached using the 8-Pin 568B Mod Jack

Plug a regular RJ-45 Patch Cord (or make your own cord) into the 8 pin jack. It's wired 568B, using the first three pairs. Plug the Patch Cord into a regular 8 Pin Jack, or cut the cord and punch it down on a 66 or 110 block (see below).

TKM Modular Wiring Schematic
TKM Modular Wiring Schematic

Custom Configurations Available including push buttons and other components.

Photo Gallery
TKM-6 Modular 8-Pin Switch Front Mount Black (Top View)
TKM-6 Modular 8-Pin Switch Front Mount Black (Top View)
