#KIT1O - MLP-270 270V 66 Block Surge Protector

MLP-270 Lightning Protector (Top View)
MLP-270 Lightning Protector (Top View) MLP-270 Lightning Protector (Front View)

SKU: #KIT1O
Price: $22.95

In Stock

Product Highlights
  • 66 Block Lightning Protector
  • 270V Maximum Voltage (CO Line)
  • Self-Resetting Fuse
Warranty & Terms
Product Details

MLP-270 1 CO Line (1 Pair) 270V 66 Block Lightning Protector

For POTS lines and Analog Station Ports with Ring Voltage.

The MLP-270 protects the equipment when the voltage on the pair rises above 270V. It also opens the line when the current goes over 150ma. When the voltage or current goes back below the threshold, the MLP-270 automatically resets.

If the line doesn't have ring voltage, use one of our lower voltage MLP Protectors. If you don't know the voltage on the line (and there is no ring voltage), put a DC volt meter across the pair to determine the voltage that's on the line normally, then choose a protector that has a higher voltage threshold than what you read (by at least a couple of volts).

Our MLP Protectors come in the following thresholds: 14V, 21V, 30V, 56V, 70V, 110V, 123V and 270V.

You'll need one Protector for each regular phone line or analog station port (pair) with ring voltage.

If you're putting this on an analog station port going to another building (OPX), be sure to put them at BOTH ENDS of the cable leaving the buildings!

See our Maximum Lightning Protection Knowledgebase article for more technical details.

Photo Gallery

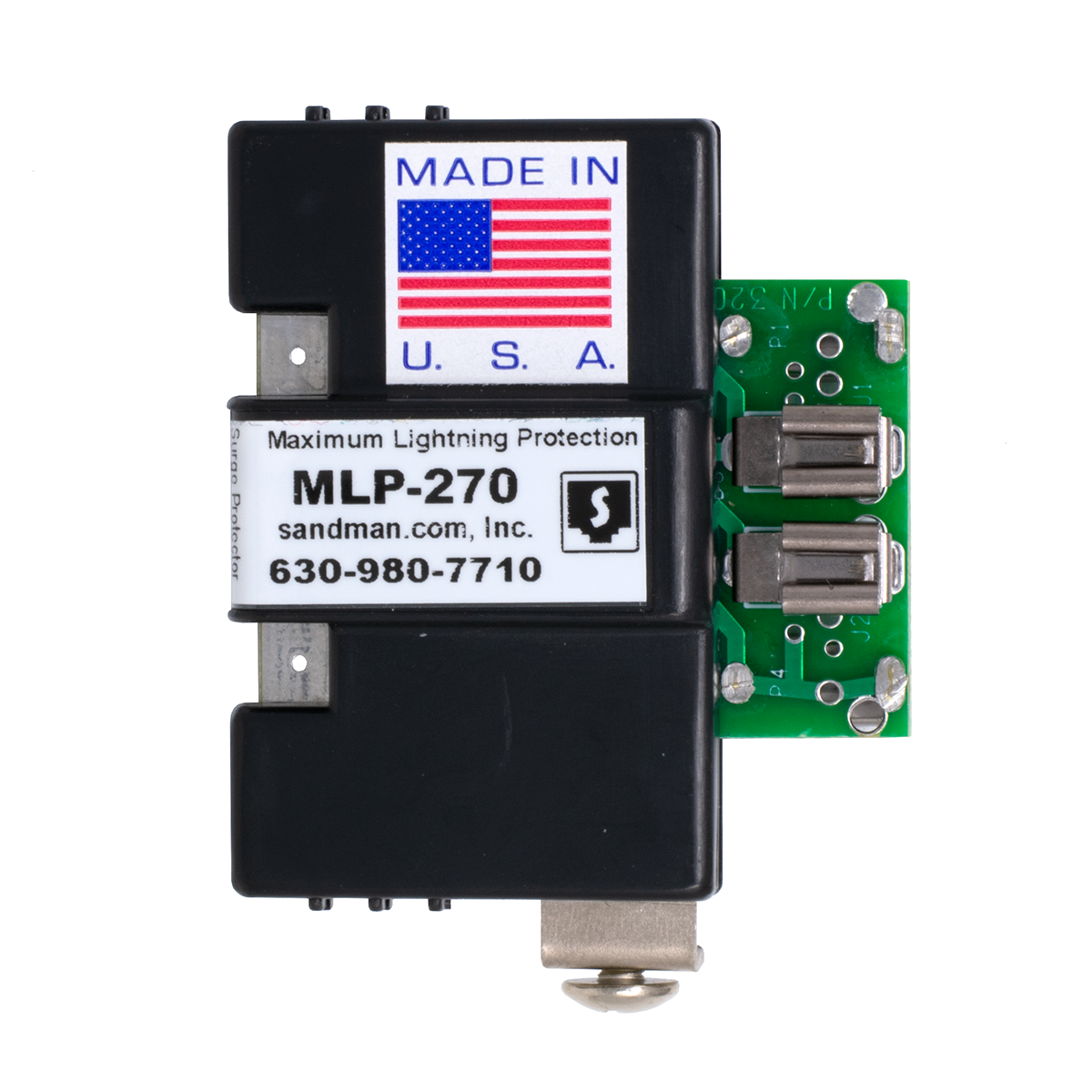

MLP-270 Lightning Protector (Top View)
MLP-270 Lightning Protector (Top View)

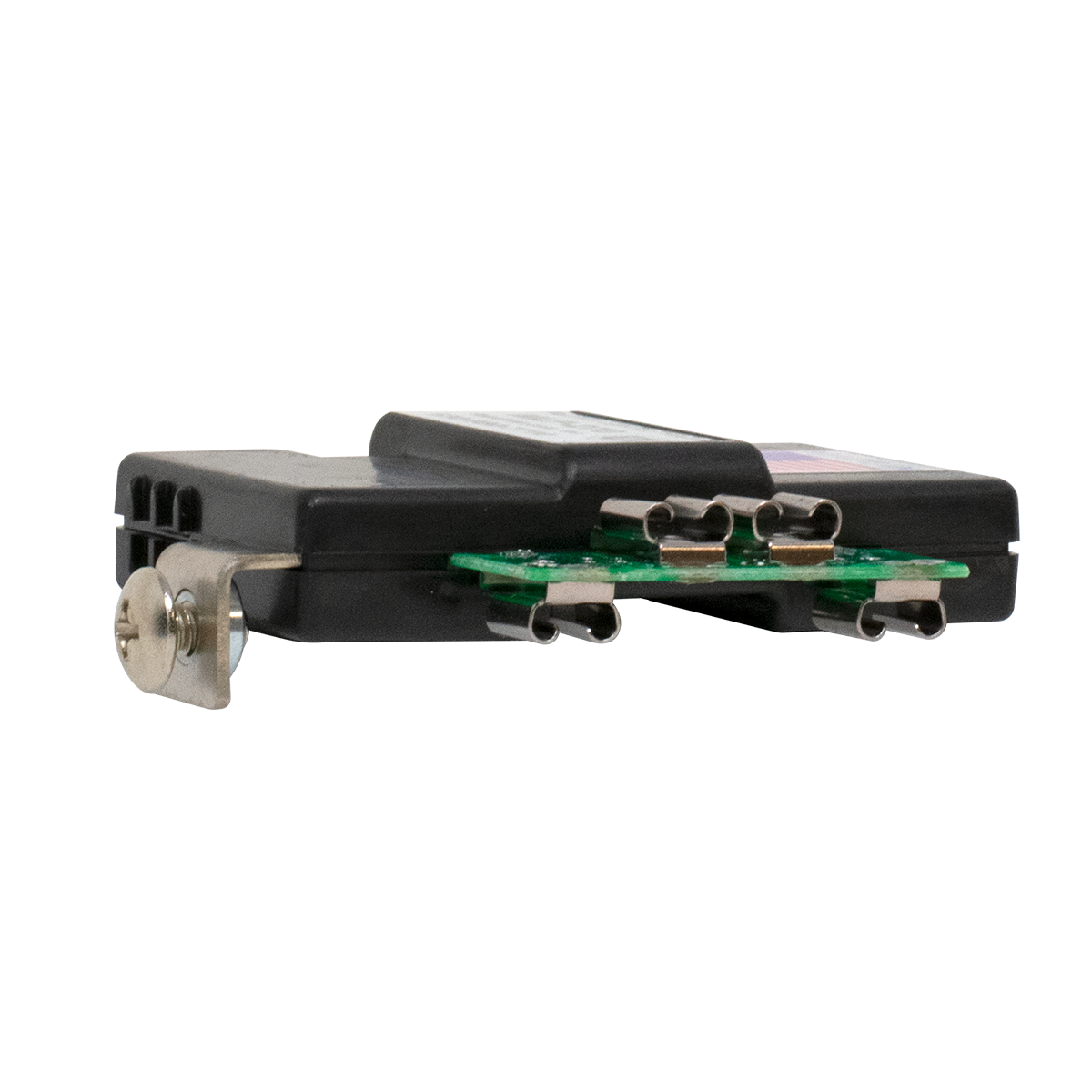

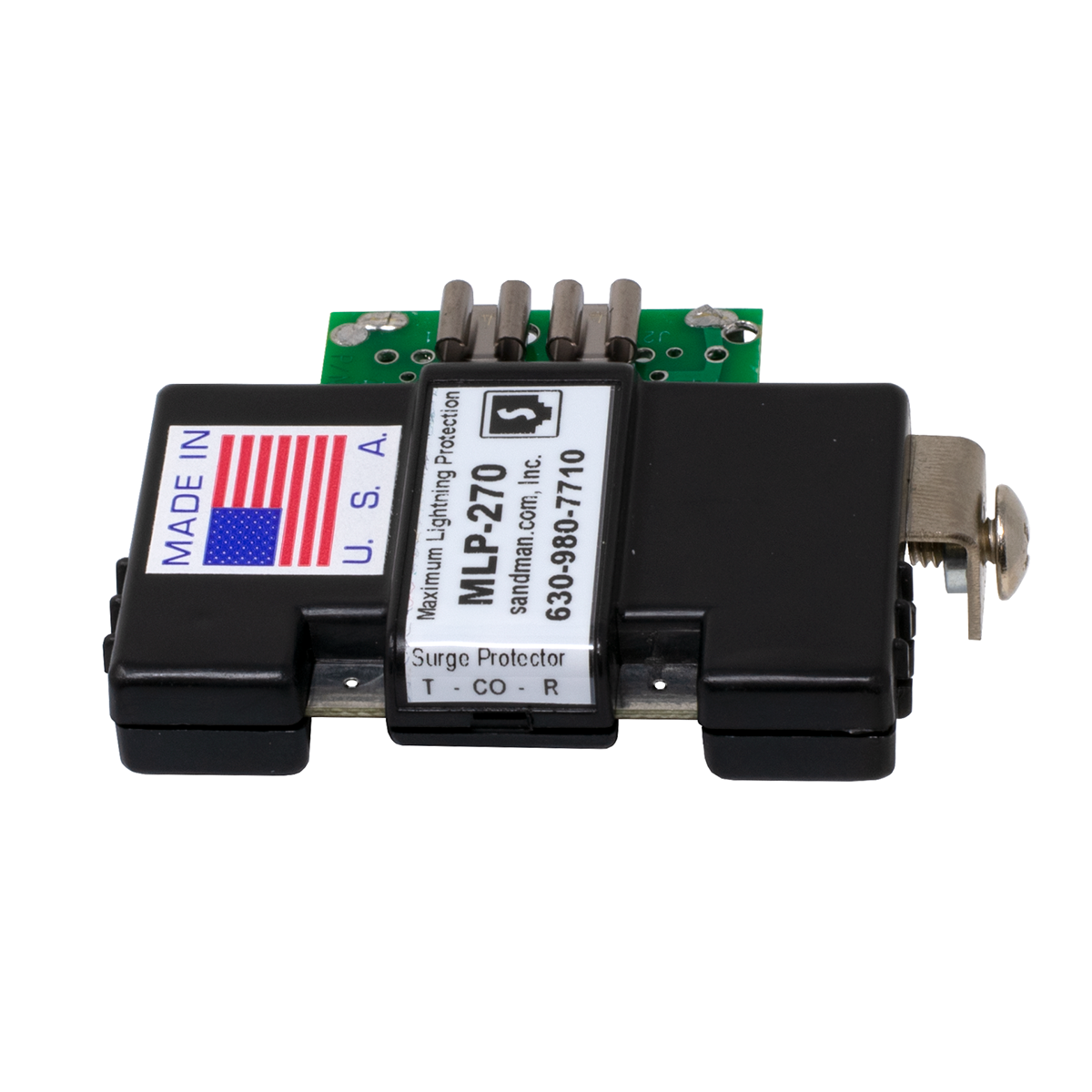

MLP-270 Lightning Protector (Front View)
MLP-270 Lightning Protector (Front View)
