#KIT1L - MLP-123 123V 66 Block Surge Protector

MLP-123 T3/E3 1 Pair Lightning Protector (Top View)
MLP-123 T3/E3 1 Pair Lightning Protector (Top View) MLP-123 T3/E3 1 Pair Lightning Protector (Front View) MLP-123 T3/E3 1 PR PROTECTOR

SKU: #KIT1L
Price: $27.95

In Stock

Product Highlights
  • 66 Block Lightning Protector
  • 123V Maximum Voltage (T3/E3)
  • Self-Resetting Fuse
Warranty & Terms
Product Details

MLP-123 1 Pair T3 & E3 123V 66 Block Lightning Protector

For T3 / E3 Lines (1 Pair) up to 123V.

The MLP-123 protects the equipment when the voltage on the pair rises above 123V. It also opens the line when the current goes over 150ma. When the voltage or current goes back below the threshold, the MLP-123 automatically resets.

If you don't know the voltage on the line (and there is no ring voltage), put a DC volt meter across the pair to determine the voltage that's on the line normally, then choose a protector that has a higher voltage threshold than what you read (by at least a couple of volts).

Our MLP Protectors come in the following thresholds: 14V, 21V, 30V, 56V, 70V, 110V, 123V and 270V.

You'll need one Protector for each pair.

If you're putting this on a line going to another building (OPX), be sure to put them at BOTH ENDS of the cable leaving the buildings!

See our Maximum Lightning Protection Knowledgebase article for more technical details.

Photo Gallery

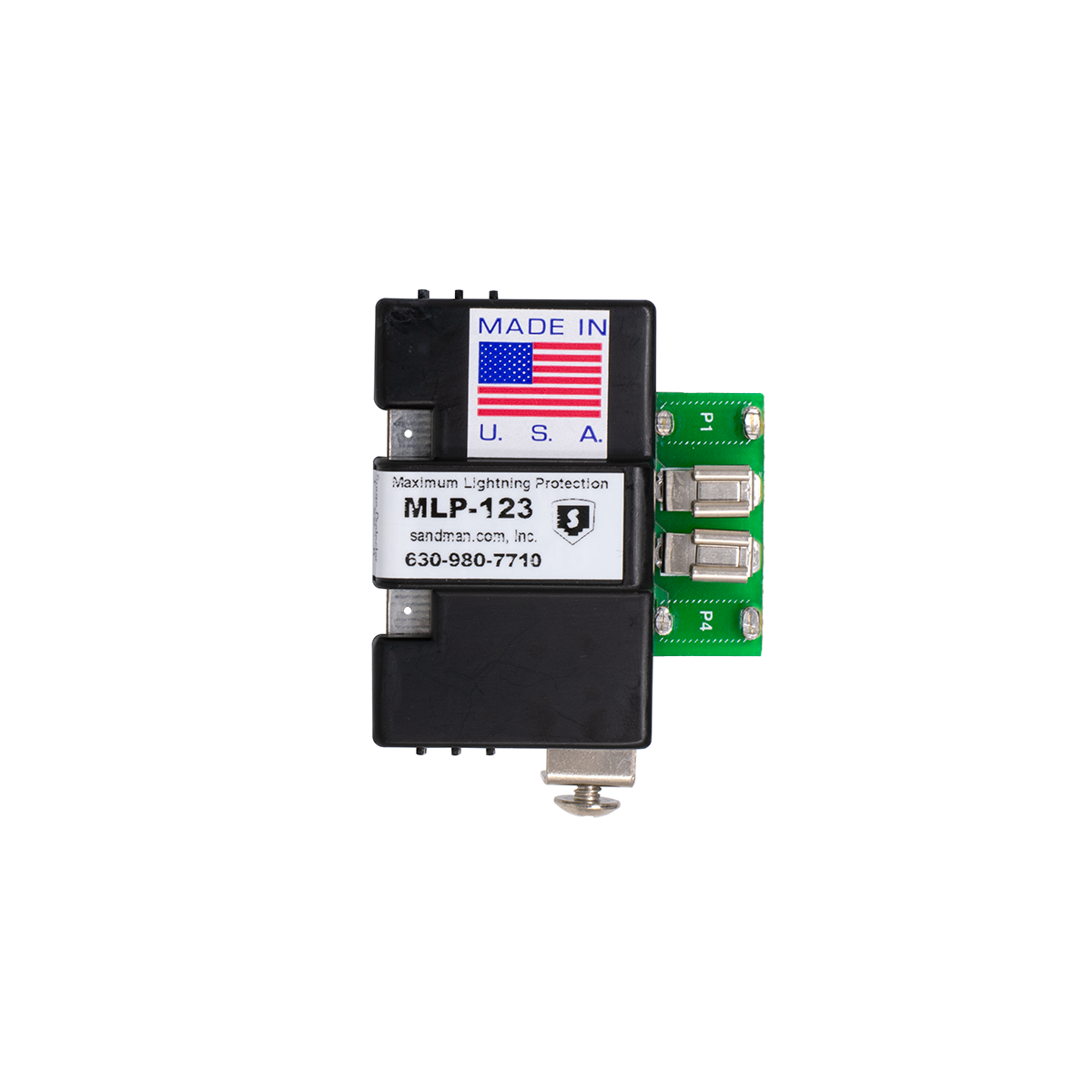

MLP-123 T3/E3 1 Pair Lightning Protector (Top View)
MLP-123 T3/E3 1 Pair Lightning Protector (Top View)

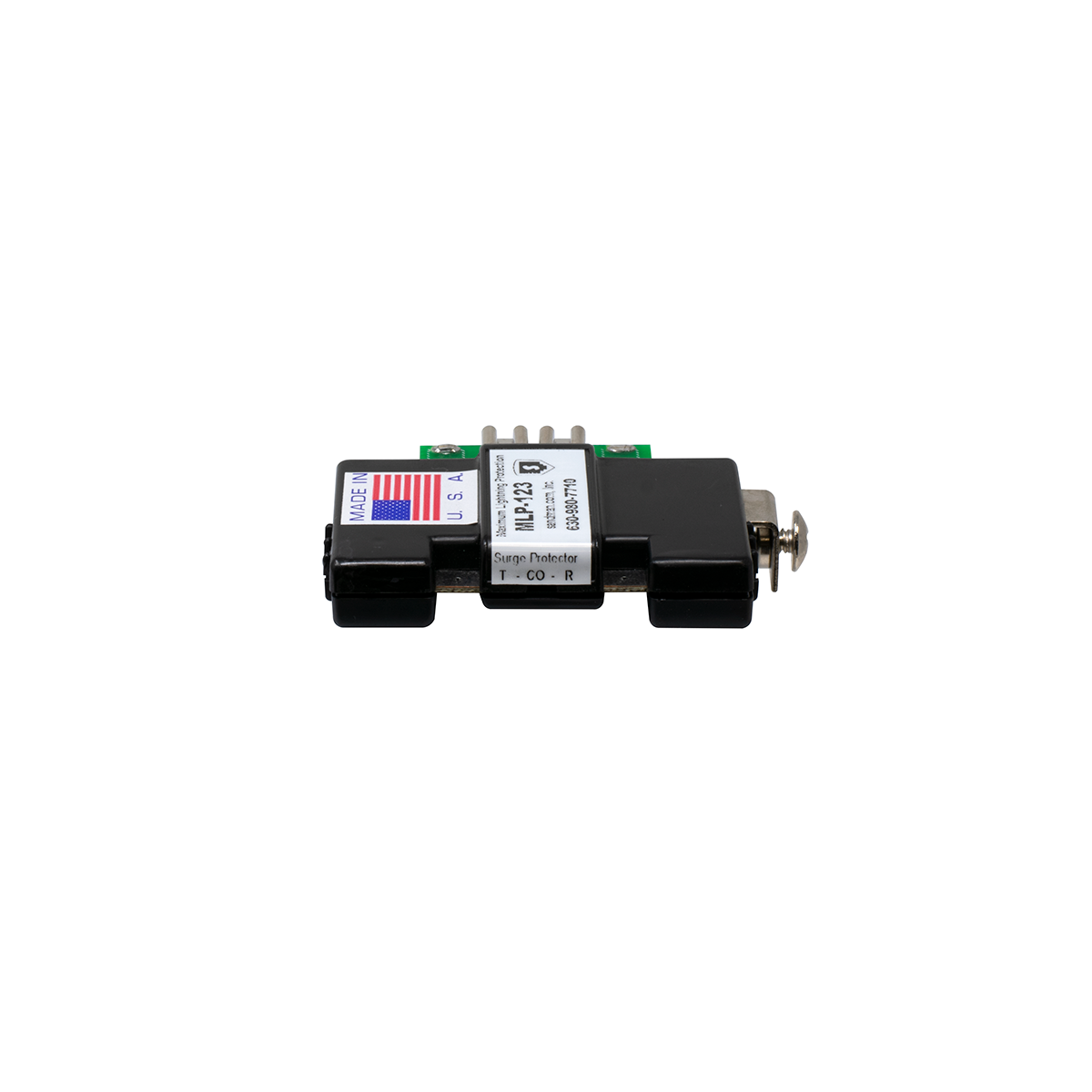

MLP-123 T3/E3 1 Pair Lightning Protector (Front View)
MLP-123 T3/E3 1 Pair Lightning Protector (Front View)

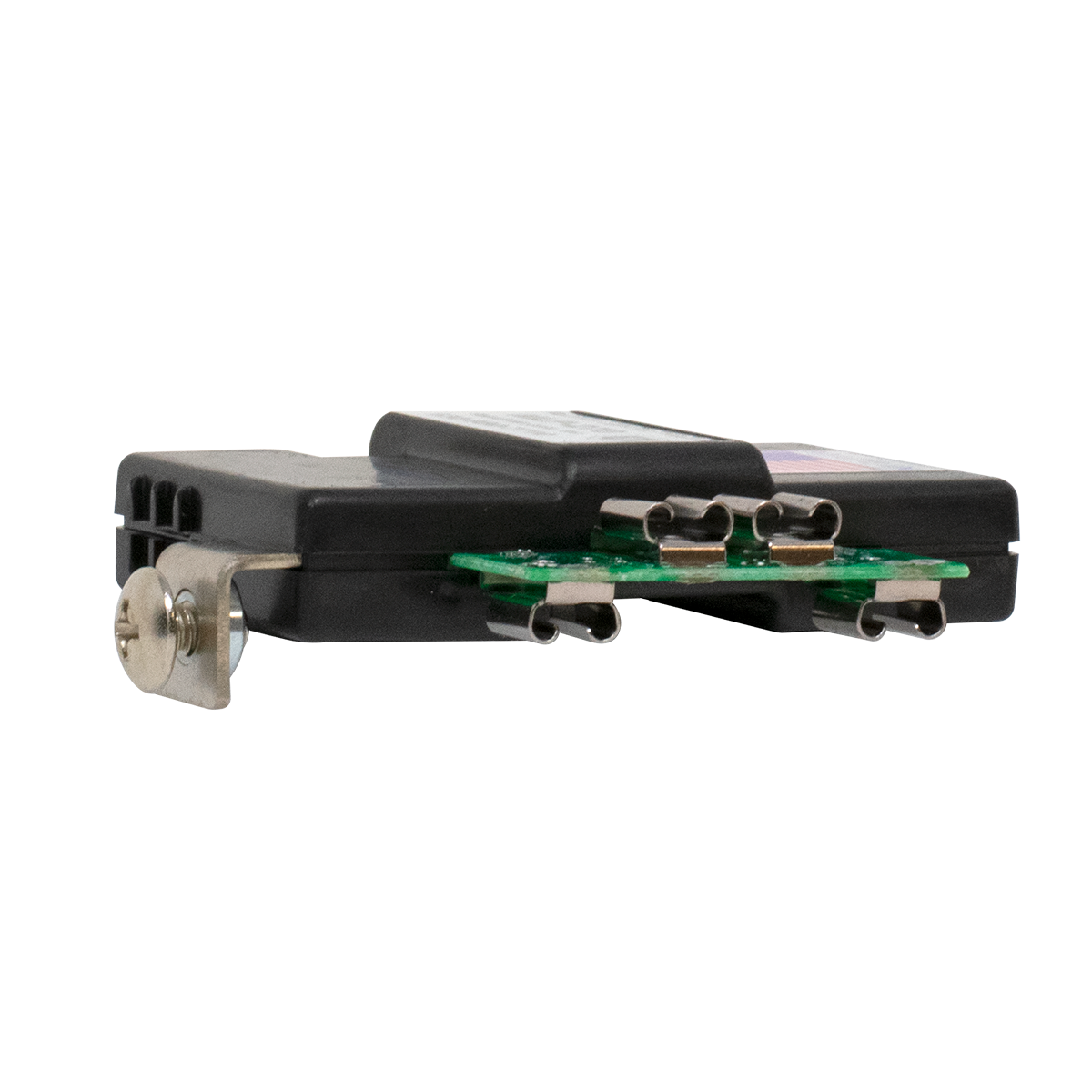

MLP-123 T3/E3 1 PR PROTECTOR
MLP-123 T3/E3 1 PR PROTECTOR
