#CID2G - Modular Large LED Ring Indicator

SKU: #CID2G
Price: $23.95

In Stock

Add to Cart

Product Highlights

• Large 20mm LED Ring Indicator
• For Analog Lines and Station Ports
• Line Powered

Warranty & Terms

• 1 Year Warranty
• 30-Day Money Back Guarantee
• See Full Warranty / Ordering Terms

Product Details

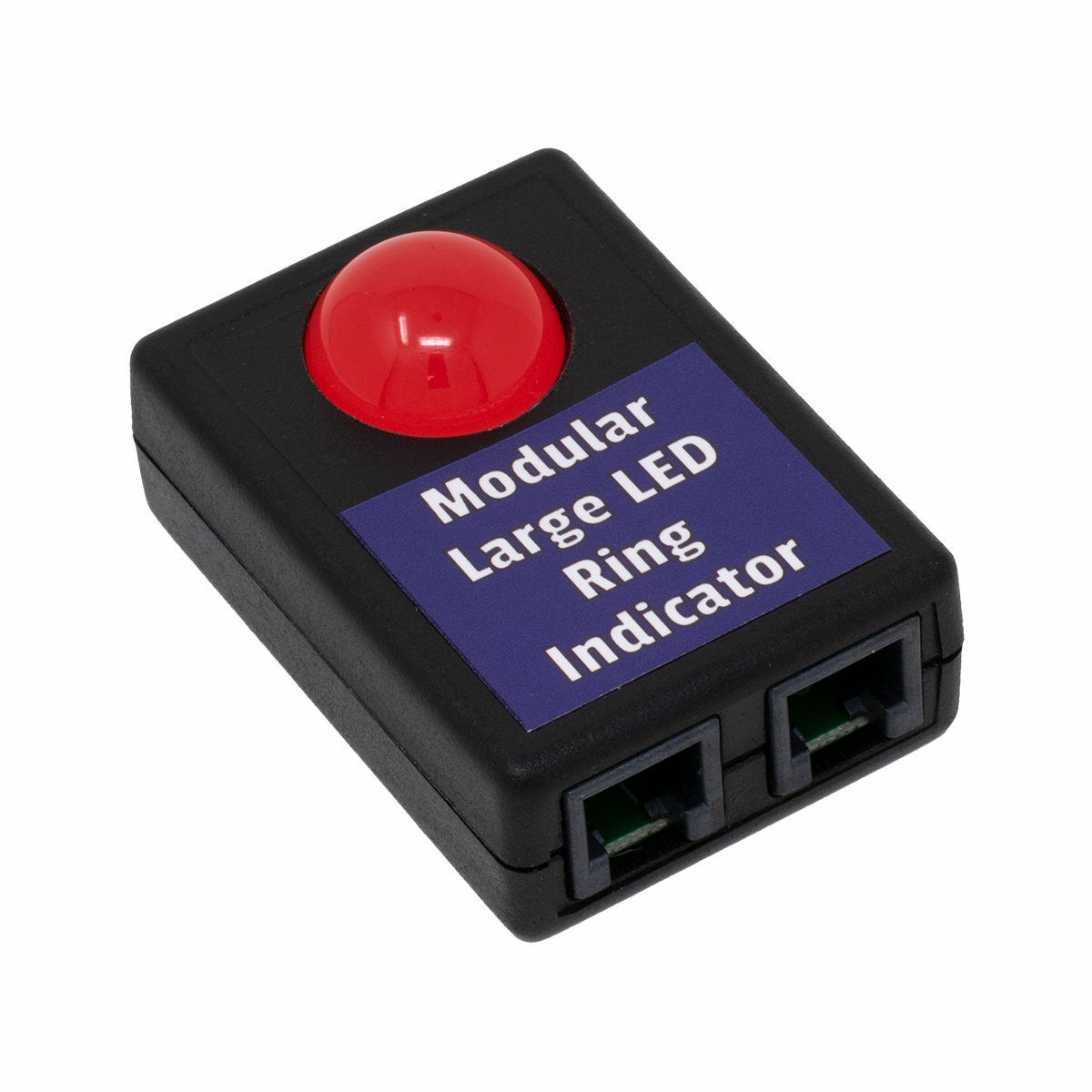

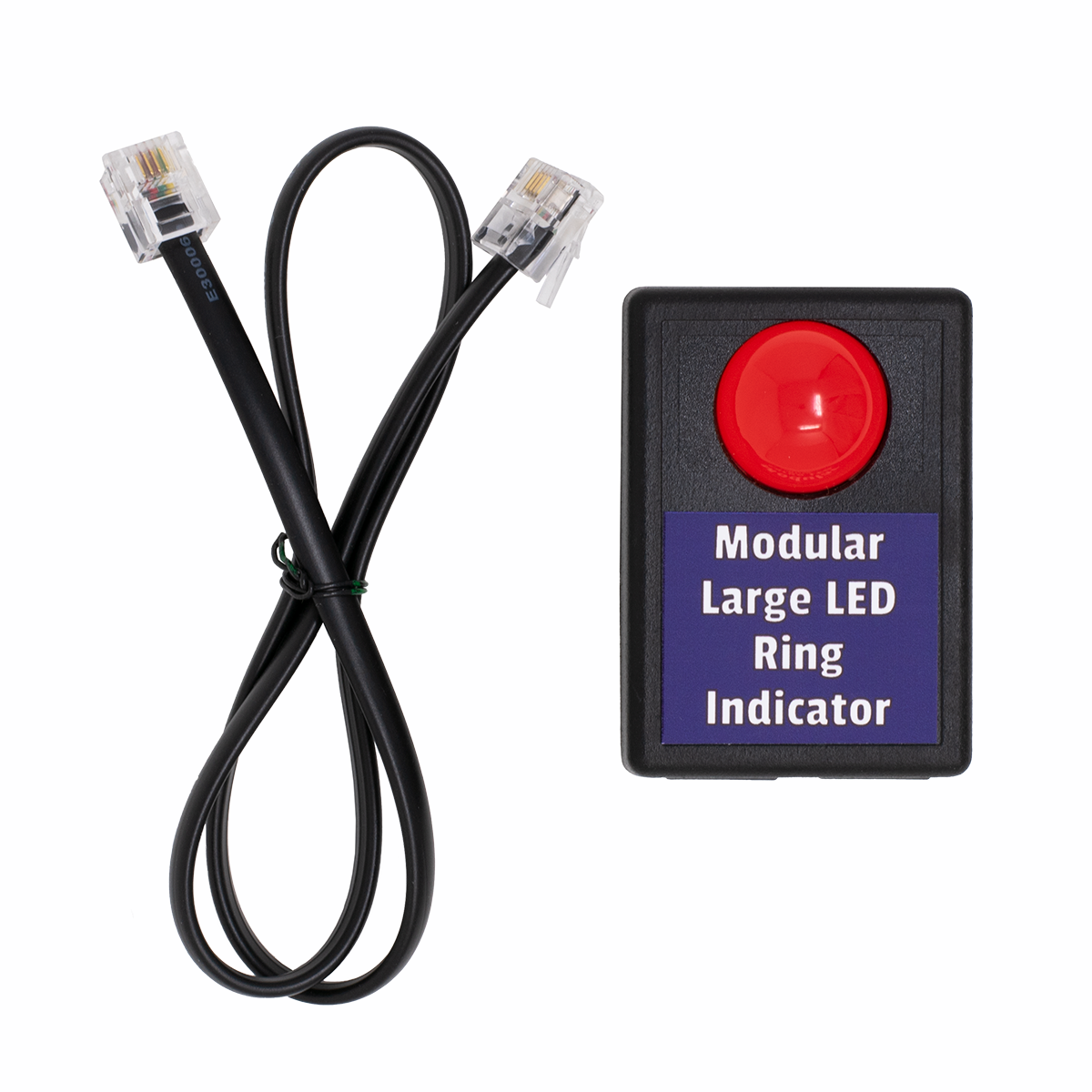

Modular Large LED Ring Indicator

This is REALLY bright!

Much brighter than a beehive lamp... this huge 20mm (3/4 inch) diameter LED actually has six LEDs inside of it. It's very bright!

This indicator gets bridged across (in parallel with) an analog POTS line or station port. The Large LED will go on and off following the ring cadence of the line it's connected to.

Modular Large LED Ring Indicator Specs:

• Connects bridged ACROSS the line (connect either jack)
• Large 20mm LED to indicate Ringing
• Follows cadence of ring (but no AC flutter during ringing)
• Ignores Ring-Tap from pulse dialing or phones on the same line being hung-up
• 0.5 REN ring load
• Detects ringing from 40-150VAC, 20-30 Hz
• Line Powered Indicator - no power supply required.
• Includes double stick tape for mounting.
