World's Best Doorbox

Easiest to Sell  •  Easiest to Install  •  Easiest to Use

Light Gray Door Box and Controller


The
World's Best Door Box is also the least expensive, but it's got the features your customers need!

It's incredibly easy to install  because it uses only 1 PAIR of wires to the door - Even the old existing doorbell wire!

It's easy to use because all you do is answer the phone when someone pushes the CALL button at the door.



NOTE:  You DON'T need a working phone line in the house to use the World's Best Door Box!

If you don't have a phone line, just use the existing wiring in the house and you'll only use the phones
to answer the door. Or just plug a cordless phone into the World's Best Door Box!


This Upgrade enhances the SECURITY of any New or Used Home.

After over 15 years of sales, it's the World's Most Popular Door Box,
and it comes with a 2 Year Warranty!

It's great for older or disabled people who have a hard time getting to the door,
or who just don't want to take the chance of going to the door.

It's a lot safer than answering a regular door bell in a business after hours,
and it can save a lot of time walking through the office or factory.

It's so easy to use that everybody knows how to use it as soon as you install it!

Answer the phone when it rings.  That's it!

 For Home

For Business

  • The Door Box Controller goes in-series with the telephone line coming into the house. Use it with or without a phone line!

  • Press the CALL button on the Door Box, and all of the phones in the house ring in a distinctive manner.

  • Built-in Call Waiting gives you a distinctive Beep. Hookflash to answer the door, and hookflash again to go back to your caller.

    Call Waiting from the door works the same way as the Phone Company's, so your customer already knows how to use it!

  • The Door Chime Interface will ring a real door bell, or activate the switcher for a security camera.

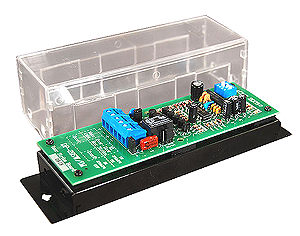

  • Use the Door Strike Controller to open a door or gate. It goes in-series anywhere along the single pair to the door. If you have two doors, it only opens the door you're talking to when you press the * key on your telephone.

  • Call OUT to the door at any time if you hear noises outside. Simply hookflash to go between the phone line, Door 1, and Door 2.
    • LINE-OUT on the Door Box Controller goes to a spare CO Line on the phone system

      NOTE: This system doesn't connect to a station port on a phone system under any circumstances. It provides talk battery and ring voltage, just like a telephone line, so it can't be connected to a station port which also provides talk battery and ring voltage.

      Click HERE to see our No-dial Phones and Automatic Dialers if you are out of CO ports, and need to use a station

    • Press the CALL button on the Door Box, and whatever phones you've programmed to ring for that CO line will ring - including night ringing and external ringers.

    • Use the Door Strike Controller to open a door, a gate, or even a garage door for a truck driver.

    • Use the Door Chime Interface (relay) to activate a loud buzzer or chime, or even switch a security camera to the door when someone pushes the Door Box CALL button.

    • Call OUT to the door at any time by simply going off-hook on the CO line.

    Got a cordless phone?   Answer the door from just about anywhere...


    • In bed
    • In the shower
    • In the garage
    • Under your car
    • At your neighbor's house

    It's great for the UPS man!

    Features:

    • All the phones ring 3 times when a visitor pushes the "CALL" button... Just pick up the nearest phone to answer the call!

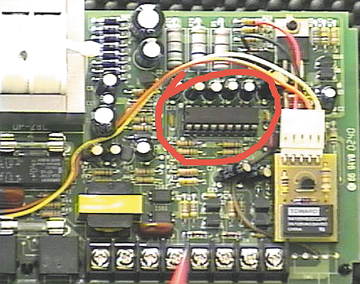

    • In a business, the phones ring 8 times (optional chips are available to control ringing, but a PBX chip is included inside the Controller).

    • 2 Door Boxes (Door 1 and Door 2) connect to the single Controller... It's unbelievably inexpensive to cover 2 or more Doors!

    • Each Door has a Distinctive Ring if you are using the World's Best Door Box with a phone line.

    • Bridge a Maximum of 4 Door Boxes to 1 Controller (2 on each Door). The audio will come out of all of the Door Boxes connected to the same Door connection on the Controller. It doesn't get any more economical than this!

    • You can series 4 Controllers together, to cover 16 Doors ringing in on 1 CO Line or phone!

    • Set an answering machine on 2 rings to take messages from the Door and the phone line, or 4 rings to only take messages from the phone line.

    • Full Duplex Operation to both Door Boxes - No Voice Switching, No Cutting In & Out!

    • Only 1 Pair Needed to the Door! It even works on the old doorbell wire (18 gauge maximum size to go up to 350 feet, CAT5 will go up to 4,000 feet).

    • Call OUT to the Door at any time... Flash to go between the Doors.

    • The Door Box Controller will drive up to 5 standard ringers (5 REN, like the Phone Company), or a line on a phone system.

    • Will work thousands of feet out to a Door Box at a Gate!

    • No code to remember to open the door!   Press * and the optional Door Strike Controller buzzes your door for 3 seconds, or as long as you hold the * key, plus 3 seconds.

    • For a stealth Door Box, mount a Door Box behind a grill above the door, and use the old door bell button as the CALL button.

    • Use the Door Chime Interface to operate a real doorbell, or to stop a security camera switcher on the correct camera for that door.

      If you have a dog, you need the Door Chime Interface to have the old door chime ring when someone is at the door, otherwise the dog won't bark when someone pushes the CALL button - they'll bark every time the phone rings!


      If you have a dog, you need the Door Chime Interface!

      If you have a dog, you need the Door Chime Interface to make the old door chime ring when someone's at the door... Otherwise the dog won't bark when someone pushes the CALL button, the dog will bark and run to the door every time the phone rings (your customer won't like that!).



    The Door Box System makes a very inexpensive Hands-free Intercom!

    Put the Door Box at the boss's desk, and the secretary can call the boss hands-free, even if he's on the regular phone. Works just as well as a hands-free Intercom in a small warehouse, where the warehouse employee can talk-back to the person calling.


    All of the components of the Door Box System can be purchased separately.
    Buy exactly what you need, when you need it.

    Make up a Demo System so you can demonstrate it to your customers!!
    Make up a Demo System to show your customers. Use a hardware store door bell and a buzzer (to simulate a door strike).

    As soon as a customer sees it in action, they want it!





    7 Minute Video on the Features of the
    World's Best Door Box

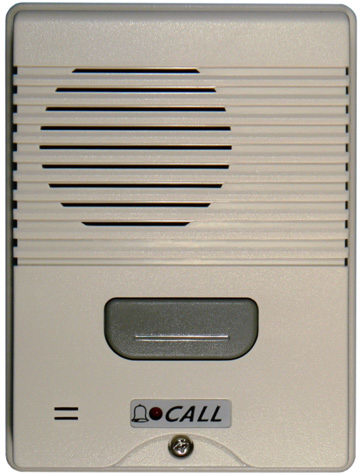

    SURFACE MOUNT DOOR BOX - OFF-WHITE

    Click for bigger picture of the Off-White Surface Mount Door Box





    Surface Mount Off-White Door Box






    The Door Box mounts easily to any surface





    Separate Base makes it easy to install on a single-gang box, or screwed directly to the wall.

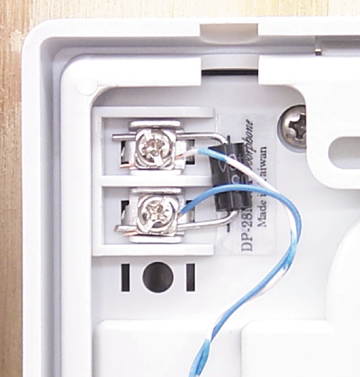

    Only 2 Screw Terminals for the 2 Wires!

    If you're mounting the Door Box to a wall where water might come down in-back of the Door Box, simply put a little silicone sealer or bath-tub caulk on the screw terminals to keep them dry, or use our Metal Awnings (below).

    Comes with sandman.com 30 Day Moneyback Guarantee

    Part Number: CLN5Q   Price: $49.95


    SINGLE METAL DOOR BOX AWNING

    Black Single Metal Door Box Awning





    Black Metal Single Door Box Awning

    Fits Surface Mount Door Box



    Screw the Metal Awning to a wall, gate or fence post, and mount the Surface Mount Door Box to the Awning. The Awning gives you a nice flat surface to mount the Door Box, even on a thin wrought-iron fence.

    In addition to making mounting easier on some surfaces, the Awning protects the Door Box from water coming from above or down the wall, behind the Door Box.

    All of our Door Boxes come with a special water resistant Mylar Speaker that can't be damaged by water.



    Comes with sandman.com 30 Day Moneyback Guarantee

    Part Number: CID1P   Price: $26.95

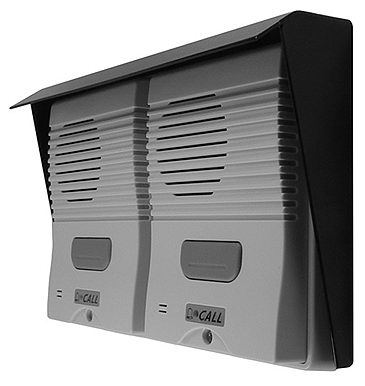

    DOUBLE METAL DOOR BOX AWNING

    Black Double Metal Door Box Awning






    Black Metal Double Door Box Awning

    Fits Surface Mount Door Box



    The Double Awning is great for a 2 or 4 Flat Apartment Building, giving each apartment their own Door Box and Call Button.

    It looks fine with a Single Door Box Awning mounted next to the Double.

    It also makes it easier to mount two Door Boxes on irregular surfaces like a gate post.



    Comes with sandman.com 30 Day Moneyback Guarantee

    Part Number: CID1Q   Price: $32.95


    SLIM DOOR BOX - BLACK

    Black Slim Door Box





    Slim Surface Mount
    Black Door Box





    Our NEW Slim Door Boxes Solve a Lot of Installation Problems!

          The Door Box and Awning are Aluminum Alloy

       Fits most narrow door frames, right where the door bell button is now!





    Mounted to a Very Thin Door Frame Without Using Included Awing



    Makes your special installations easy!

    Surface Mount Slim Door Box comes with an awning, and a rubber wedge that
    allows you to angle the door box to the right or left a little.

    Just two wires (Black and Red) from the rear of the Door Box connect to your wiring with splices (use Beanies or UY Connectors).

    Comes with sandman.com 30 Day Moneyback Guarantee

    Part Number: CLN6K   Price: $54.95


    SLIM DOOR BOX - SILVER

    Silver Slim Door Box





    Slim Surface Mount
    Silver Door Box


      Sames as Black Slim Door Box above.


    Comes with sandman.com 30 Day Moneyback Guarantee

    Part Number: CLN6L   Price: $54.95


    FLUSH MOUNT DOOR BOX - BRASS

    Brass Flush Mount Door Box




    Flush Mount Brass Door Box

    Fits in a Double Gang Masonry Box (you must use this type of box for the mounting screws to line up).


    Will mount on our Black Double Gang Surface Mount Box (farther down the page).

    Only 2 Wires to connect it!

    Comes with sandman.com 30 Day Moneyback Guarantee

    Part Number: PAP2Q   Price: $119.95


    FLUSH MOUNT DOOR BOX - ALUMINUM

    Aluminum Flush Mount Door Box




    Flush Mount Aluminum Door Box

    Same as Brass Flush Mount Door Box (above).



    Comes with sandman.com 30 Day Moneyback Guarantee

    Part Number: PAP2R   Price: $119.95


    FLUSH MOUNT DOOR BOX - BLACK

    Black Flush Mount Door Box




    Flush Mount Black Door Box

    Same as Brass Flush Mount Door Box (above).



    Comes with sandman.com 30 Day Moneyback Guarantee

    Part Number: PAP2S   Price: $119.95


    FLUSH MOUNT DOOR BOX - BRONZE

    Bronze Flush Mount Door Box




    Flush Mount Bronze Door Box

    Same as Brass Flush Mount Door Box (above).



    Comes with sandman.com 30 Day Moneyback Guarantee

    Part Number: PAP2T   Price: $119.95


    FLUSH MOUNT DOOR BOX - BELL STYLE - BRASS

    Brass Flush Mount Door Box - Bell Style




    Flush Mount Brass Door Box - Bell Style

    Fits in a Double Gang Masonry Box (you must use this type of box for the mounting screws to line up).


    Smoked (Clear) Acrylic Handset lets you mount a small camera inside (camera and installation hardware not included).

    Will mount on our Black Double Gang Surface Mount Box (farther down the page).

    Only 2 Wires to connect it!

    Comes with sandman.com 30 Day Moneyback Guarantee

    Part Number: CLN2S   Price: $119.95


    FLUSH MOUNT DOOR BOX - BELL STYLE - ALUMINUM

    Aluminum Flush Mount Door Box - Bell Style




    Flush Mount Aluminum Door Box - Bell Style

    Same as Brass Flush Mount Door Box - Bell Style (above).



    Comes with sandman.com 30 Day Moneyback Guarantee

    Part Number: CLN2T   Price: $119.95


    FLUSH MOUNT DOOR BOX - BELL STYLE - BLACK

    Black Flush Mount Door Box - Bell Style




    Flush Mount Black Door Box - Bell Style

    Same as Brass Flush Mount Door Box - Bell Style (above).



    Comes with sandman.com 30 Day Moneyback Guarantee

    Part Number: MMA4B   Price: $119.95


    FLUSH MOUNT DOOR BOX - BELL STYLE - BRONZE

    Bronze Flush Mount Door Box - Bell Style




    Flush Mount Bronze Door Box - Bell Style

    Same as Brass Flush Mount Door Box - Bell Style (above).



    Comes with sandman.com 30 Day Moneyback Guarantee

    Part Number: MMA4A   Price: $119.95


    Do-It-Yourself   DOOR BOX CIRCUIT BOARD, SPEAKER and MIC KIT

    DIY Door Box Circuit Board, Speaker and Mic KIT



    Do-It-Yourself

    Door Box Circuit Board, Speaker, Mic and Enclosure KIT





    Mount these Door Box Guts in the enclosure, grill or faceplate of your choice for a totally custom installation (does not include button or LED).

    Only 2 Wires to connect it to the Door Box Controller.

    Part Number: CLN6M   Price: $31.95


    HANDSET DOOR BOX WITH 4' ARMORED CORD

    Click for bigger picture of the Handset Door Box with 4' Armored Cord





    Handset Door Box with 4' Armored Cord

    Includes Double Gang Surface Mount Outdoor Box


    This works great when you need privacy like in a lobby, or where it's noisy like at a trucking company or airport gate.

    Includes push button for CALL button.

    If used in a very noisy area, our Noise Cancelling Transmitter (below) makes a great add-on, for only $25.95.

    Only 2 Wires to connect it!







    Comes with sandman.com 30 Day Moneyback Guarantee

    Part Number: MIS6A   Price: $139.95


    BLACK G-STYLE ELECTRET NOISE CANCELLING TRANSMITTER

    Click for bigger picture of the Electret Noise Cancelling Transmitter for G-Style Handsets




    Electret Noise Cancelling Transmitter for G-Style Handsets

    Reduces background noise so it's easier to hear.

    Fits on a standard PVC or Lexan G-Style Handset.


    Comes with sandman.com 30 Day Moneyback Guarantee

    Part Number: HST3P   Price: $26.95


    DOUBLE GANG BLACK SURFACE MOUNT  BOX

    Double Gang Black Surface Mount  Box





    Black Double Gang Surface Mount Box

    Allows you to Mount a Flush Mount Door Box on the Wall



    Use this box for surface mounting our Flush Mount Door Boxes, or to surface mount our Handset Door Box in a Black box (instead of silver).

    You must use this type of box for the mounting screws on the Flush Door Box to line up!

    Comes with sandman.com 30 Day Moneyback Guarantee

    Part Number: MMA4C   Price: $18.95


    DOUBLE GANG SURFACE MOUNT OUTDOOR BOX

    Double Gang Surface Mount Outdoor Box



    Double Gang Surface Mount Outdoor Box

    This is the box that comes with the Handset Type Door Box.

    You can also surface mount our Aluminum Flush Mount Door Boxes using this box. The aluminum lacquer finish over aluminum means this box will look good for years in almost any environment.


    Conduit openings for wire entry on the top, bottom and back of the box. Includes screw-in plugs to cover the openings that aren't needed. You can mount it to the wall with fasteners from inside the box, or attach the included mounting ears to the box (pictured).

    Comes with sandman.com 30 Day Moneyback Guarantee

    Part Number: MON9H   Price: $12.95


    DOUBLE GANG GASKET FOR WEATHERPROOFING

    Gasket lets you weatherproof the Double Gang Surface Mount Outdoor Box.. You can cut it to work in almost any double gang application, including for our Flush Mount Door Boxes.

    Comes with sandman.com 30 Day Moneyback Guarantee

    Part Number: MON9I   Price: $1.39


    DOUBLE GANG MASONRY BOX

    Double Gang Masonry Box




    Double Gang Masonry Box

    Use this box for mounting our Flush Mount Door Boxes, or to flush mount our Handset Door Box.

    You must use this type of box for the mounting screws on the Door Box to line up!

    Comes with sandman.com 30 Day Moneyback Guarantee

    Part Number: CLN2K   Price: $4.59


    DOOR BOX CONTROLLER

    Click for bigger picture of the Door Box Controller





    Door Box Controller

    The Controller is the heart of the Door Box System.


    The wall mount Controller is normally mounted near where the phone lines come into the building, or near the phone system.

    Each Door has a Distinctive Ring, different from the regular ring on a CO line. Note that you wouldn't hear the distinctive ring on most phone systems, because the phone system makes its own ring (it doesn't pass the cadence from the phone line through to the ringers on the phones).

    If a phone system can't pass the distinctive ringing on to the phones, and the customer really needs to know whether it's the front or back door ringing, the solution is to use two Controllers, one for each door, and have them ring in to separate CO lines on the phone system (this is still pretty inexpensive!). For example, CO5 for the front door, and CO6 for the dock door.

    You can bridge up to two Door Boxes to each Door connection on the Controller. That lets you have up to 4 Door Boxes on each Controller

    BUT WAIT, there's more...

    You can put up to four Door Box Controllers in-series with each other. Just go from LINE OUT to LINE IN from Controller to Controller. With 4 Door Boxes per Controller (2 on each Door port), that means you can have up to 16 Door Boxes ringing in on 1 Line!

    Note that if you put two Door Boxes on a single Door Box port, the same sound will come out of both Door Box speakers, and you'll hear the ambient noise from both doors (and the volume will be a little lower because they are bridged together).

    Easy Installation!  The telephone line and/or telephones connect to either the modular jacks, or screw terminals (jacks and screw terminals are bridged together internally).

    There are two screw terminals (+ and -) for each of the two Doors.

    The Controller installs in minutes!

    Use LINE IN for the telephone company phone line if you are sharing the Door Box System with a phone line in a home. LINE OUT goes to all of the phones in a home, or a phone system in an office.

    NOTE: Do not share a phone line if the Door Box System is on a line on a phone system. Because the line on the phone system can be put on hold, there would be nobody to hear the Call Waiting tone when someone is at the door, and the line is on hold. That would lead to service calls where the customer complains that someone was at the door, but they never heard the phones ring.

    Call Waiting should NEVER be put on a CO line on a phone system for that reason. It's very hard to diagnose No Answer problems caused by Call Waiting on a service call!

    Use the Controller to make your phones ring!   You don't even need a Door Box if you just want to ring your phones when something happens!

    • When you short the Door 1 or Door 2 contacts through a 300 ohm resistor, any phones you have connected to LINE OUT will ring!
    • Stick an electric eye on your driveway, and the phones will ring every time someone comes up the drive
    • All you need is something that provides a dry closure to make your phones ring
    • If you also have a Door Box, put the Door Box on Door 1, and the dry closure on Door 2 (you'll hear a distinctive ring on single line non-cordless phones)

    Controller comes with an AC plug (not a power cube). The Controller MUST be installed in an area protected from the weather (temperature and moisture). You should also install an AC Surge Protector, and Lightning Protection if it's connected to a phone line or the Door Box goes outside the building to a gate (see Door Box Lightning Protectors below).

    Comes with sandman.com 30 Day Moneyback Guarantee

    Part Number: CLN5O   Price: $122.95    |||    3+ Price:   $116.95


    8 RING CONTROLLER CHIP FOR USE WITH CO LINES

    Replacing the Chip (IC) that comes inside the Controller (by default) with this Chip makes all of the phones ring 8 times, rather than the default 3 times when someone pushes the CALL button. This Chip allows the front and back doors to ring differently.

    This Chip is only for use when sharing a phone line, not for use with a phone system.

    Even with the default 3 Ring Chip, you still have around 10 seconds to answer the phone to talk directly to the door after the phones stop ringing. If you hear dial tone when you pick up the phone, simply hookflash once to call out to Door 1 to talk to the visitor.

    Unplug the AC before removing the circuit board from the Metal Box!

    Click for bigger picture of the Chip in the Controller (circled in red)



    While it's easy to get the circuit board out of the Controller by spreading the legs on the metal box, only an experienced technician should remove and replace the chip. If any of the legs are bent by mistake when inserting the new chip (with the power off!), the Controller won't work properly.




    Part Number: CLN2O   Price: $7.95


    8 RING CONTROLLER CHIP FOR USE WITH CO LINES - WITH NO DISTINCTIVE RINGING

    Replacing the Chip (IC) that comes inside the Controller (by default) with this Chip makes all of the phones ring 8 times, rather than the default 3 times when someone pushes the CALL button. The ringing will sound the same for both the front and back doors (using the same cadence as from the Phone Company), which makes it compatible with some oddball phones that won't ring with any kind of distinctive ringing.

    This Chip is only for use when sharing a phone line, not for use with a phone system.

    Part Number: CLN1R   Price: $7.95


    8 RING CONTROLLER CHIP FOR USE WITH A PBX

    NOTE: This Chip is included inside every Door Box Controller!

     It's taped inside the metal box, so you'll have it available immediately if you're working on a PBX or Key System.

    Replacing the Chip (IC) that comes inside the Controller (by default) with this Chip makes a phone system (key system or PBX) ring 8 times, rather than the default 3 times when someone pushes the CALL button. The ringing will sound the same for both the front and back doors (using the same cadence as from the Phone Company), which makes it compatible with any phone system.

    This Chip is only for use on a PBX or Key System, not for use when sharing a phone line (the Controller won't even see the CO line with this Chip).

    The purposes of this chip are to:

    • Allow a user to call out to the door
    • Ring 8 times (instead of 3 times) to give a user more time to answer the door
    • To provide a standard telephone company type ring cadence (2 seconds on, 4 seconds off), to make it compatible with phone systems that don't like distinctive ringing

    Part Number: CLN2M   Price: $7.95


    3 RING CONTROLLER CHIP FOR USE WITH CO LINES (DEFAULT)

    This is the Default Chip that comes in the Controller. You won't need it unless you put another Chip in the Controller, and lose the original Chip.

    This Chip is only for use when sharing a phone line, not for use with a phone system.

    You have around 10 seconds to answer the phone to talk directly to the door after the phones stop ringing. If you hear dial tone when you pick up the phone, simply hookflash once to call out to Door 1 to talk to the visitor.

    Part Number: CLN2A   Price: $7.95


    2AG .5A SLOW BLOW GLASS FUSE for DOOR BOX CONTROLLER

    This Fuse is in-series with the AC power cord and the electronics in the Door Box Controller. It should never blow, but if there's no power to the Controller and it's plugged in to a live AC outlet, this might be the problem.

    The other fuse in the Controller is a fast blow fuse, but you can use this one to replace either one.

    This is a Slow Blow Fuse.

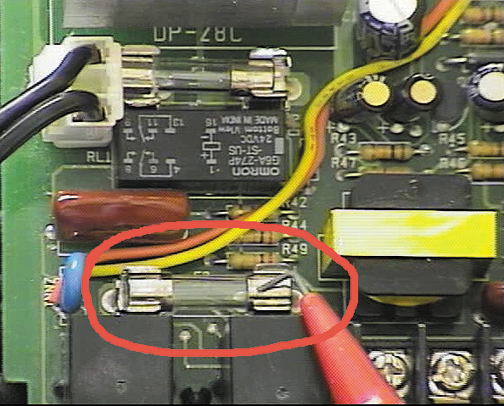

    Click for bigger picture of the AC Slow Blow Fuse in the Controller (circled in red)



    It's easy to get the circuit board out of the Controller by spreading the legs on the metal box.

    The AC Fuse is the top fuse, next to the AC power cord on the circuit board. The Phone LIne Fuse is the bottom  fuse.

    You can tell the fuse is Slow Blow by looking for the two little solder blobs on the wire inside the fuse (circled in red).



    Part Number: TLS7O   Price: $0.59


    DOOR STRIKE (LOCK) CONTROLLER

    Door Strike (Lock) Controller











    Door Strike (Lock) Controller



    This new model has a DIP Switch to let you select *, #, 5 or 7 as the trigger digit. * (star) is the default trigger digit.

    When the user pushes the * key (star key) on their phone, you'll get a dry closure (short) on two wires for 3 seconds (or as long as the * key is held down, plus 3 seconds if the phone will make a tone for as long as you hold a button down).

    When the * key is pressed, only the door that the user is talking to will open. If there are two doors with door strikes, you'll need two Door Strike Controllers, one for each door.

    A security feature in the Door Strike Controller will prevent someone from making a * tone at the door to try to open the door strike.

    If you need to open a door strike or gate from the door, without someone doing it from inside the building, simply put a keypad type switch at the door, which will give you a dry closure (which you would bridge across the same contacts as the Door Strike Controller).

    There is no separate connection to the Door Strike Controller from the main Door Box Controller. The Door Strike Controller can be installed anywhere in-series along the single pair of wires going to the door. It doesn't have to be installed by the main Controller. It's usually installed near the door (where the strike and transformer are), so you don't have to deal with the voltage drop which occurs when you send voltage a long ways on small wires.

    NOTE: The Door Strike Controller doesn't provide the voltage to operate the door strike. It only gives you a dry closure so you can operate a door strike or gate (you put the two wires on the Door Strike Controller in-series between one side of the door strike and the door strike transformer). The door strike and transformer for the door strike must be customer provided.

    IMPORTANT: The Door Strike Controller should be used for low voltage applications. If you are using a 110VAC door strike, use a slave relay between the Door Strike Controller and the door strike.

    Relay Contact Ratings are: 1 Amp at 125 VAC, or 2 Amps at 30VDC.

    The Door Strike Controller will also operate a Gate



    At a Gate, you'd install the Door Strike Controller out at the Gate,
    near the customer provided gate controller and the Door Box.


    Comes with sandman.com 30 Day Moneyback Guarantee

    Part Number: CLN5R   Price: $49.95


    DOOR CHIME INTERFACE (RELAY)

    Door Chime Interface (Relay)








    Door Chime Interface (Relay)

    The Door Chime Interface gives you a .8 second (less than a second) dry closure when the CALL button on the Door Box is pushed.



        Use the .8 second Dry Closure to:

    • Ring the real Door Chime (Door Bell) in a house
    • Operate the switcher for security cameras, so the switcher locks onto the correct camera at the door where the Door Box is located
    • Open a door strike or gate automatically when someone pushes the CALL button on a Door Box

    When used with the old door bell, connect the Door Chime Interface so that it rings either the front or rear (double or single) chime (ding or ding-dong).

    NOTE: You can only have one Door Chime Interface per Door Box Controller.

    If you have two doors where you want to operate separate chimes or cameras, you'll need to put each door on a separate Door Box Controller. You can have both Door Box Controlers ring into one phone by putting the Door Box Controllers in-series. (i.e. LINE-OUT from the first Door Box Controller to LINE-IN on the second Controller, and then LINE-OUT of the second Controller to the phones).

    Two wires on the Door Chime Interface are simply connected (bridged) anywhere along the pair of wires to the door. It can be installed near the main Door Box Controller, at the door, or anywhere in-between.

    Relay Contact Ratings are: 1 Amp at 125 VAC, or 2 Amps at 30VDC.

    The Door Chime Interface comes with a 110VAC power cube. You must use the power cube.

    If you have a dog, you need the Door Chime Interface

to have the old door chime ring when someone is at the door, otherwise

the dog won't bark when someone pushes the CALL button - they'll bark

every time the phone rings!



    If you have a dog, you need the Door Chime Interface to make the old door chime ring when someone's at the door... Otherwise the dog won't bark when someone pushes the CALL button, but the dog WILL bark and run to the door every time the phone rings (your customer won't like that!).



    Comes with sandman.com 30 Day Moneyback Guarantee

    Part Number: CLN2L   Price: $55.95


    VIDEO: DoorBell Fon™ Installation & Troubleshooting Training Video (1 3/4 Hours)

    VIDEO: DoorBell Fon Installation and Troubleshooting Training Video DoorBell Fon™ Installation &
    Troubleshooting Training Video


    with Mike Sandman

    1 3/4 Hours • DVD or VHS

    Includes Features & Operation

    The DoorBell Fon™ is the World's Best Doorbox!  This Training Video shows you everything you need to know to sell, install and troubleshoot the DoorBell Fon™ System.

    Complete Information is in this Training Video:

    • Features & Operation
    • Installation
      • Door Box & Controller... Only 1 Pair to the Door!
      • Reusing the existing door bell wiring (those last 10 feet to the door are pretty hard!)
      • Door Chime Interface and Door Chime
      • Door Strike Interface and Door Strike Wiring
      • Intercom Module
      • Special Installations
        • At a Gate... Up to 4,000 feet away!
        • Multiple Doors
        • With a Phone System
        • Ringing Options
        • Mounting a Separate Speaker and/or Mic to the Door Box
        • Using a Regular Door Bell Button to Trigger the Door Box, to Hide the Actual Door Box!
        • With No Phone Line
        • With a Modem or DSL
        • Awning for Wet Locations
    • Troubleshooting
      • Complete Troubleshooting Procedures make finding a problem quick and easy.

    Mike shows you how to make a Demo Kit  so you can show your prospective customer how the DoorBell Fon™ System works, or you can just show them the Features & Operation part of this video.

    Watch the complete 1 Hour 45 Minute World's Best Door Box Video on YouTube, or buy the DVD

    The DoorBell Fon's™ unique features, ease of installation and low cost make it the Most Popular Door Box in the Country!

    Regularly $19.95. But it's only $9.95 with the purchase of a DoorBell Fon™ System

    Part Number: DSI8E   Price: $19.95


    Click to ignup for Mike Sandman's Montly Tech Tips by email


    REPLACEMENT DOOR BOX SPEAKER

    Replacement Speaker for the Surface or Flush Mount Door Box





    Replacement Door Box Speaker

    Fits all Flush or Surface Mounted Door Boxes.

    Speaker has a weatherproof mylar cone.

    Complete with wire and connector that plugs into the Door Box circuit board.


    Part Number: TLS4N   Price: $4.99


    REPLACEMENT DOOR BOX MICROPHONE

    Replacement Microphone for the Surface or Flush Mount Door Box




    Replacement Door Box Microphone

    Fits all Flush or Surface Mounted Door Boxes.

    Complete with a rubber housing, wire and connector that plugs into the Door Box circuit board.

    For special applications, you can use a louder microphone (below), but you need to make sure there is more distance between the speaker and microphone, or you'll get feedback.


    Part Number: TLS4O   Price: $3.99


    LOUD ELECTRET MICROPHONE ELEMENT

    Loud Electret Mic Element


    -56db, which is LOUD compared to normal Electret Microphones

    This element has solder terminals, which need to have wires soldered to them.


    Part Number: HST9O   Price: $2.99


    VERY LOUD ELECTRET MICROPHONE ELEMENT

    Very Loud Electret Mic Element


    -52db, which is VERY LOUD compared to normal Electret Microphones

    This element has solder terminals, which need to have wires soldered to them.


    Part Number: HST9R   Price: $2.99


    Electronic Devices Attached to Phone Lines Need Lightning Protection!

    If the Door Box System is attached to a phone line in a home, it can be damaged during a lightning storm.

    The Phone Company provides lightning protection where their wires enter a home, but it's designed to prevent damage to the old style phones that weren't electronic. Modern electronic phones or phone equipment is much more sensitive to lightning than older phones.

    If your Door Box is mounted to the side of the building, and the wires don't travel outside the building, you don't need lightning protection on the wire coming from the door. If the Door Box is located at a gate, away from the building, you absolutely need lightning protection on the pair of wires before it gets to the Controller.

    Even if you run the cable to the gate in a metal conduit, you still need lightning protection on the pair from the door, at the controller.

    Here are some of the Lightning Protectors we carry:


    MLP-270M MODULAR MAXIMUM LIGHTNING PROTECTION™

    Click for bigger picture of Modular Lightning Protector



    Modular Maximum Lightning Protector™ Module







    Click for bigger picture of Modular or Terminal Strip Lightning Protector on Wall Mount Ground Bus (Bracket)













    For standard telephone lines or analog station ports with ring voltage.

    Same protection as our 66 Block model, but with modular jacks. Comes with Double Stick Tape, or can be mounted to a Wall Mount Ground Bus

    Part Number: KIT4G   Price: $22.50


    MAXIMUM LIGHTNING PROTECTION™ with SCREW TERMINALS

    Click for bigger picture of Terminal Strip Lightning Protector



    Terminal Strip Maximum Lightning Protector™ Module







    Click for bigger picture of Modular or Terminal Strip Lightning Protector on Wall Mount Ground Bus (Bracket)







    Comes in 3 Voltage Ranges




    Same protection as our 66 Block model, but with a Terminal Strip with screw terminals. Mounts to a Wall Mount Ground Bus


    MLP-270T 1 CO LINE PROTECTOR with SCREW TERMINALS

    Click for bigger picture of Terminal Strip Lightning Protector


    You need one Protector for each regular phone line or analog station port (pair) with ring voltage.

    If the line doesn't have ring voltage, use one of our lower voltage Protectors (below).

    Attach the ground using the opening on the Terminal Strip (maximum 12 Gauge Wire), use a Ground Lug (not included) attached to the Screw, or mount to a Wall Mount Ground Bus.

    Part Number: KIT4A   Price: $30.95


    MLP-030T 30 VOLT PROTECTOR with SCREW TERMINALS

    You need one Protector for each line (pair) with a maximum DC voltage of 30V.

    This could be used on a data pair (RS-232 etc.), or a station port with very low voltage.

    Be sure to put them at BOTH SIDES of the cable leaving the building!

    Part Number: KIT4C   Price: $29.95


    DOOR BOX TVS (LIGHTNING PROTECTION)

    Door Box TVS (Lightning Protection)


    Door Box TVS (Transient Voltage Suppressor)

    This device prevents high voltages from damaging the Door Box when it's out at a gate, away from the building where the Controller is. Just stick the TVS under the two screws on the back of the Surface Mount Door Box, or beanie it between the two wires on the Flush Mount Door Box,


    Click for bigger picture of the Door TVS mounted to a Door Box


    Part Number: KIT4E   Price: $1.49


    WALL MOUNT GROUND BUS with GROUND LUG

    Click for bigger picture of Modular or Terminal Strip Lightning Protector on Wall Mount Ground Bus (Bracket)







    Ground Bus bent at a right angle to allow Maximum Lightning Protectors™ to mount to the wall from the Ground Screw on the side of the Protector.


    Includes Ground Lug


    Part Number: KIT4D   Price: $11.50


    10 FOOT AC GROUND PLUG WITH 12 GAUGE WIRE

    Click to see bigger picture of our 10 Foot Ground Wire with an AC Power Plug

    This is as easy as it gets!

    Plug the Yellow Plug directly into a wall outlet that you've tested to make sure it's wired correctly (see our AC Outlet Tester). Strip the #12 Green Stranded Wire and put it in the Modular or Terminal Strip Lightning Protector ground, or in a Ground Lug.

    Don't plug this into a power strip! You want the best ground you can get, and you don't want to include all the extra (smaller) wire in a power strip.

    Click HERE for our Electrical Grounding Tech Bulletin

    NOTE: Use this #12 Ground Wire with our Terminal Strip or Modular Maximum Lightning Protectors™. #10 wire won't fit in the terminal for the ground wire on those Protectors, unless you cut some of the strands off (not a good idea).

    Part Number: KIT1F   Price: $10.95


    Search Our Site:



             Contact Us   |   Privacy   |   Phone: 630-980-7710

    VISA MASTERCARD AMEX

                        Copyright © 2013 Mike Sandman Enterprises, Inc.
