25 Pair AMP Ended Cable
Assemblies
(32, 50, and 100
Pair are also available)
Our 25
Pair Connectorized Cable Assemblies have an AMP
brand 25 Pair Connector at one or either end:
 |
 |
|
25 Pair MALE
Connector (P=Plug) |
25 Pair MALE
Connector has a Blue Cover |
 |
 |
|
25 Pair FEMALE
Connector (C=Connector) |
25 Pair FEMALE
Connector has a Red Cover |
 |
All of our 25 Pair Connectorized Cables are made with 2
ends, even if you're ordering a cable with just one end...
This allows us to test the cable on a
machine that tests all 25 pairs, and then cut the cable
at the appropriate length. |
|
CONNECTORIZED CABLE CODES:
A 25 Pair Female (Connector) to Male (Plug) is a 25CPxx
(xx = Length in Feet). It can also be stated 25PCxx.
A 25 Pair Female (Connector) to
Nothing is a 25CXxx
A 25 Pair Male (Plug) to
Nothing is a 25PXxx
A 25 Pair Male (Plug) to
Male is a 25PPxx
A 25 Pair Female (Connector) to
Female is a 25CCxx
Our Regular 25 Pair
Cable
is CAT3 rated |
|
25 Pair with NO
Connector (X=Nothing) |
We can custom make 32 (64 Pin), 50
and 100 Pair
Connectorized
CAT3 Cables, which have multiple
male or female connectors (fingers):
We can also custom make
CAT5 Rated 25 Pair Cables
with 90, 110 and 180 degree connectors
(We stock a few Male to
Female sizes if you're in a hurry)
Our Connectorized Cables are assembled from
US made Telephone Gray Cable,
and US made AMP connectors, right here in
the Chicago area!
CAT5 Connectorized
Cables use US made Avaya Connectors,
and US made silver/gray cable (not Telephone Gray).
 |
 |
| Each
cable is hand made by humans.

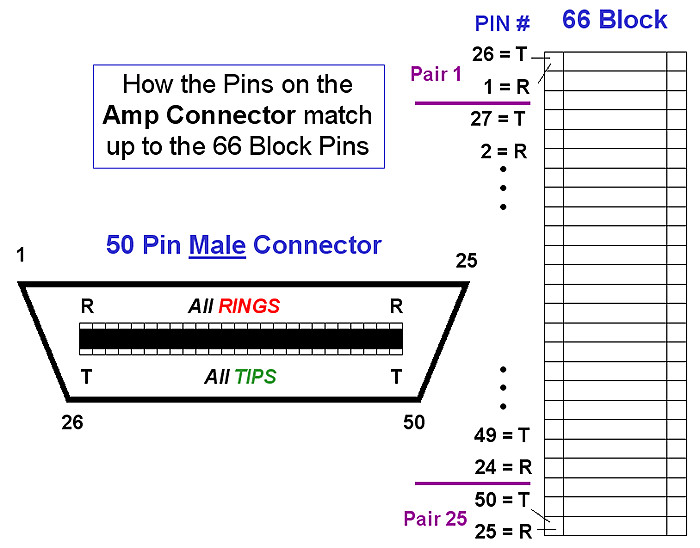

The cable we use has great
colors. You won't have a problem punching it down on a 66 or 110
block.
We buy the best cable available,
since we have to be able to see the colors ourselves to make the connectorized cables! |

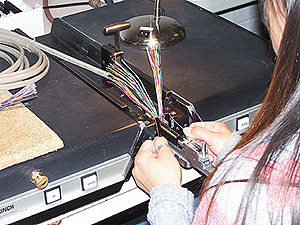

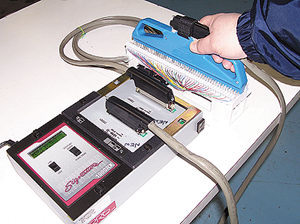

Each cable we make
is tested by humans on a sophisticated electronic cable tester
that checks each conductor/pair of the cable.
Every 25 pair connectorized cable we
make is made double ended, so all 25 pairs can be tested (it's
impossible to test a single ended cable!).
If you order a single ended
cable, we cut the double ended cable after it's tested to make
two single ended cables. |
 |
 |
|
Our US made
CAT3 cable has industry standard Telephone Gray coloring |

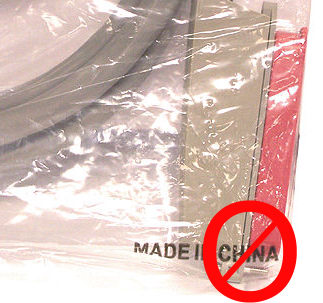

Chinese cables
usually have a silver-gray color. China never had an
industry standard (they had very few phones, and very few phone
systems in their country). |
 |
|

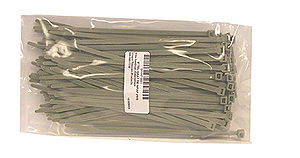

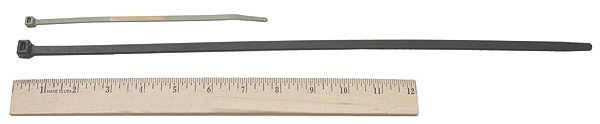

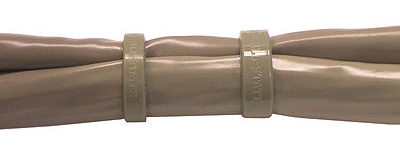

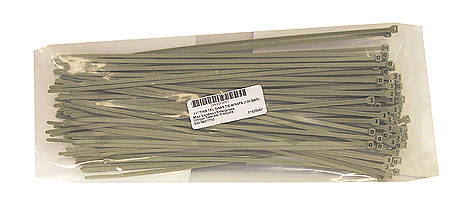

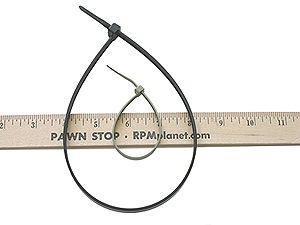

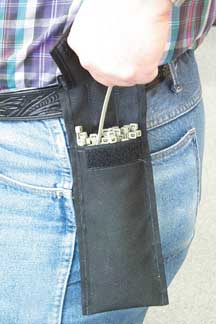

We have US made
Telephone Gray Tie Wraps (farther down the page) to finish off your
professional installation
|
|

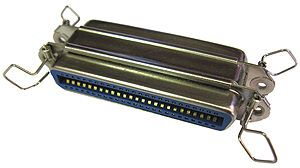

These Locking Clips make it very difficult
to unplug the connectors!
Some cards in
systems are made to use Female Connectors with
these Locking Clips |
These
locking Clips are Incredibly Annoying...
We don't put
them
on our standard cables, but you can special order
them.
One screw is
installed in each connector we ship, allowing you to tighten
the two screws for an in-line connection, or attach the
cable to a card
edge connector. |
|
NOTE: Our Female Connectorized Cables
DON'T come with Locking Clips, unless you specifically
ask for them!

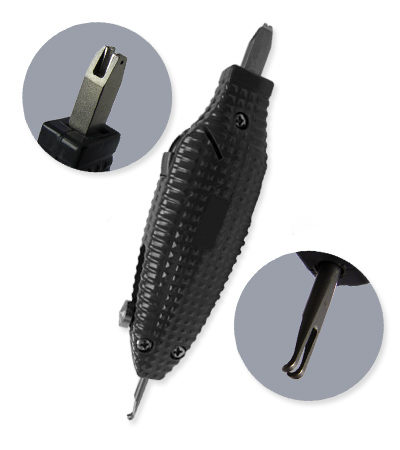

 Make

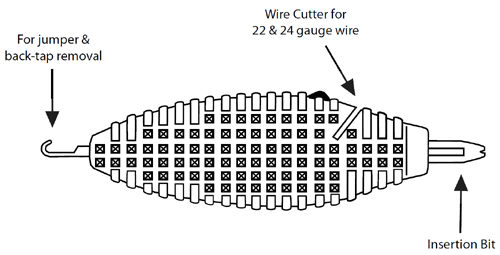

sure you have a Spudger ($1.59 each) or small screwdriver to
get
them apart, if you
order them! |
|
|

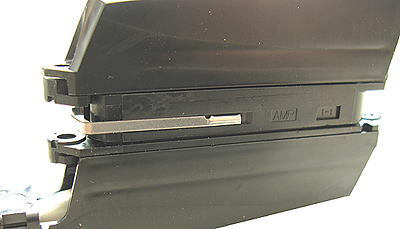

 An
AMP U-Clip is available that secures the Connectors
without screws. It slides onto the Male
AMP Connector. The tips of the U go through a slot and grab
onto a ridge on the side of the Female Connector -
preventing you from separating them until you pull the
U-Clip off. (25 Pair
ONLY!)
Part Number:
DSI4O Price: $0.59 each |
 |
 |
 |
Stocked
Double Ended Connectorized Cables with Screws
at great prices:
| Size |
Price |
Size |
Price |
Size |
Price |
25CP3:
25CP5:
25CP10:
25CP15:
25CP25:
25CP50:
25CP100:
25CP150:
25CP200: |
$15.10
$17.50
$22.80
$28.80
$41.60
$73.60
$137.60
$201.60
$265.60 |
25CC.5
(6" GOOF-
25CC5:
25CC10:
25CC15:
25CC25:
|
$11.95
Cable™)
$17.50
$22.80
$28.80
$41.60
|
25PP.5
(6" GOOF-
25PP5:
25PP10:
25PP15:
25PP25: |
$11.95
Cable™)
$17.50
$22.80
$28.80
$41.60 |
| If you need a Single Ended Cable, you can cut one end of a
Double Ended Cable off, and get two Single Ended Cables.
We stock more sizes of Double Ended
Male to Female Cables because we never know what our customers
need, and they usually need them in a hurry. |
Stocked
Single Ended Connectorized Cables with a Screw
at great prices:
| Size |
Price |
Size |
Price |
|
|
25PX5:
25PX10:
25PX15:
25PX25: |
$12.50
$17.95
$23.95
$36.95
|
25CX5:
25CX10:
25CX15:
25CX25:
|
$12.50
$17.95
$23.95
$36.95
|
|
|
|
P = Plug (Male) • C =Connector (Female) |
All of the above Connectors are
standard 90°
Connectors (except CAT5), where the cable comes out to the side (the standard in the
phone business). 180°
Connectors are available, where the cable comes straight out the
Connector (a little more expensive).
25 Pair
Plenum Rated Cables are custom made, and take a few days to make.
CAT3 50 and 100 Pair Cables, and CAT5 25 Pair Cables are also custom made, and take about a week to
make (they are very labor intensive).
180° AMP
Connector Available - With Screws
180° AMP
Connector Available - MALE with Bail Lock (notches for clip)
This 25 pair MALE connector has notches at
the ends, instead of screws. It plugs into a piece of equipment with the flip up
wire locks (called a Latch Lock).
This is similar to the old Centronics printer
cables, which were 36 pin instead of 50 pin.
We can also put a FEMALE Latch Lock connector
(with the flip up wire locks) with a 180°
hood on a cable. 90° hoods don't work well with
these type of connectors.

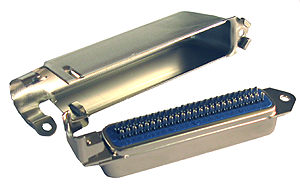

90° Clamshell AMP
Connector Available
More "squared off" than the standard
90°
Connector Hood
Special cable
assemblies can be designed
and made to order quickly!
We'll make
whatever size connectorized cable you need, but it will take a couple of days:
25 Pair Custom
Connectorized PVC (Regular)
Cable
$4.50
per 90 degree connector (Male or Female), and
$1.39
a foot for 25 pair CAT3 cable.
$8.95
per 180 degree connector (Male or Female), and
$1.39
a foot for 25 pair CAT3 cable.
25 Pair Custom
Connectorized Plenum Rated
Cable (Cable is White, not Gray)
$4.50
per 90 degree connector (Male or Female), and
$1.96
a foot for 25 pair CAT3 Plenum Rated cable.
$8.95
per 180 degree connector (Male or Female), and
$1.96
a foot for 25 pair CAT3 Plenum Rated cable.
25 Pair Custom
Connectorized Shielded
Cable (Could
take up to 2 weeks if we're out of cable)
$5.85
per 90 degree M or F connector with a 2' drain, and
$2.23
a foot for the 25 pair CAT3 Shielded cable.
$9.95
per 180 deg M or F connector with a 2' drain, and
$2.23
a foot for the 25 pair CAT3 Shielded cable.
32 Pair (64 Pin) Custom Connectorized
Shielded Cable
Used in special applications
- Will probably take about a week for us to make it
This connector is a
single connector that's larger (longer) than a standard 25 Pair AMP
Connector (which has 50 pins)
Each connector will
have a 6 inch drain wire:
$16.10
per 32 pair 90 degree connector (Male or Female), +
$2.39
a foot for the 32 pair CAT3 Shielded ca.
$17.85
per 32 pair 180 degree connector (Male or Female), +
$2.39
a foot for the 32 pair CAT3 Shielded ca.
50, 100 and
200 Pair Connectorized Cables
Have Multiple "Fingers"
Take about a week to make
50 Pair Custom
Connectorized Cable
$13.50
per end (2 Male or Female 90 degree connectors), and $2.25
a foot for the 50 pair CAT3 cable.
100 Pair Custom
Connectorized Cable
$27.00
per end (4 Male or Female 90 degree connectors), and
$4.29
a foot for the 100 pair CAT3 cable.
Connectors are normally staggered.
This is a big cable that's really heavy to ship!
Ouch... Copper Prices have been climbing!
It's not because there's a
shortage of copper, or there's a lot of copper being used anywhere in the
world. People are investing in it because they think the prices will go
higher in the future, because of demand from China. Just like oil.
QWIK Cables™
By request we are now making a full line
of QWIK Cables™*
These are primarily 25 pair cables with
one or more AMP connectors, and/or 1, 2 3 and/or 4 pair modular plugs, and
even RCA connectors for paging and MOH, that bring all the connections from the KSU out to the
frame.
|
You can order them in our
standard 10' length, or longer at $1.39 a foot. |

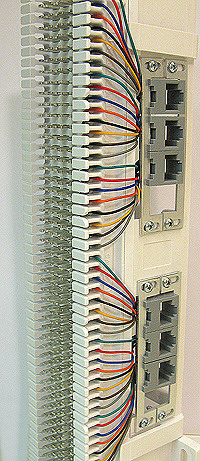

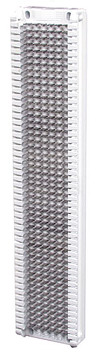

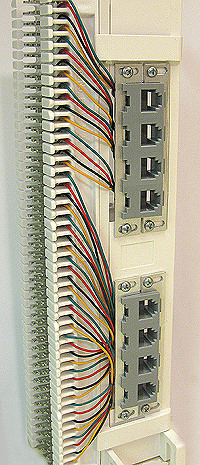

| Punch the cable
with no connector down to a 66 block yourself for the neatest installation...
Or
order the cable with a Male or Female AMP Connector to plug into the side

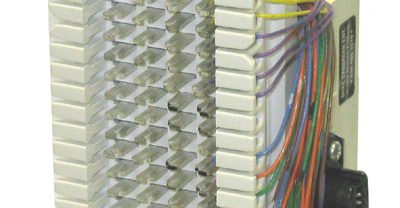

of a Connectorized 66 Block (click here to go
to connectorized blocks below) for the fastest installation. |
 |
These 10' QWIK Cables™ are
available now, with more to come soon (or ask us to make a custom cable for
the particular systems you install)...
-
QWIK Cable™ for the Samsung Officeserv - Part Number: MMA8A $35.50
24 8 Pin Mod Plugs (middle pair on each plug)
-

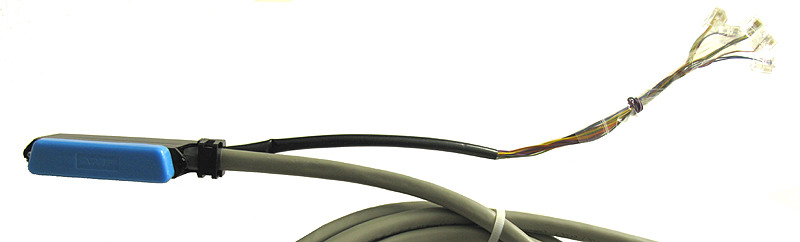

QWIK Cable™ for the Toshiba CIX40 - Part Number: MMA8B $31.95
AMP Connector, and 5 Mod Plugs for the CO Lines
(Lines 1 to 7)
-

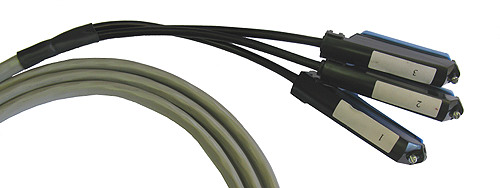

QWIK Cable™ for Toshiba - 25
Pair for DK-24, DK 56, DK 96, DK280, DK424, and DK424i
- Part Number:
MMA8F $44.95
3 AMP Connectors
to go to up to 3 station cards
-

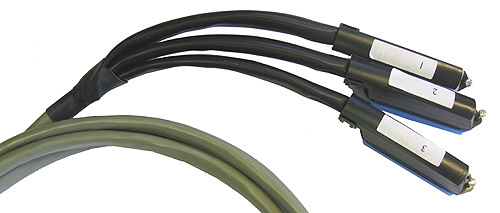

QWIK Cable™ for Toshiba -
50 Pair for Toshiba 100, and 670 CTX
- Part Number:
MMA8G $59.95
3 AMP Connectors
to go to up to 3 double density cards
-
QWIK Cable™ for the NEC DS2000 and
DSX-40/80/160 Systems
- Part Number: MMA8E $44.95
8 Mod Plugs for the CO Lines
(Ports 1 through 24 - 4 Ports per USOC Mod Plug)
-

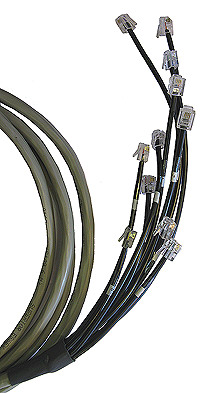

QWIK Cable™ for the Panasonic
624/824
- Part Number: MMA8C $36.95
Mod Plugs for 3 CO lines and 8 Station Ports
-

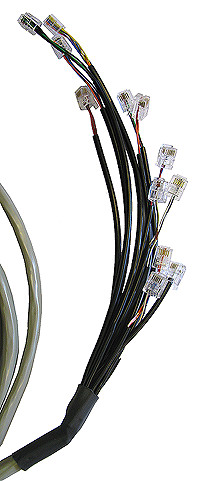

QWIK Cable™ for the Mitel 3300
Analog Chassis
- Part Number: MMA8D $39.95
12 Mod Plugs
-
QWIK Cable™ for the Vertical
SBX IP 320
- Part Number: MMA8H $33.95
11 Mod Plugs
-
QWIK Cable™ for the Avaya IP
Office
- Part Number: MMA8I $35.50
24 8 Pin Mod Plugs
• Add
$4.50
for a Male or Female AMP Connector (for the frame end)
• Add
$1.39 for each additional foot
beyond the standard 10'
NOTE: Custom lengths
and connectors may take us a day or more to make for you.
10' lengths without connectors are
usually stocked.
*We are making
cables similar to Express Quick Cables, which no longer seem to be available.
4 Pair QWIK Cable™
-

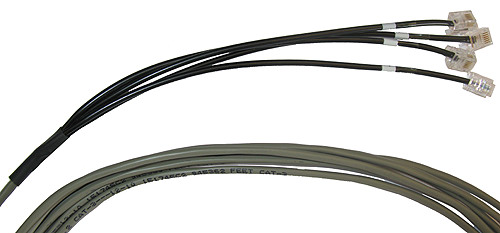

QWIK Cable™ 4
Pair - 15' with 4 Individual 4 Pin Mod
Plugs (also known as 4x4 Cable)
One Pair per Mod Plug
- Part Number: MMA8S $13.95
-

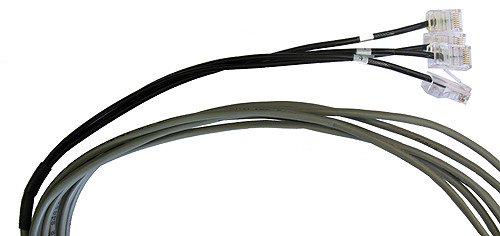

QWIK Cable™ 4
Pair - 15' with 4 Individual 8 Pin Mod
Plugs (also known as 4x4 Cable)
One Pair per Mod Plug
- Part Number: MMA8T $13.95
Mod 8 Installation Cables for NEC DS2000 and
DSX-40/80/160 Systems
NEC-808920 Mod 8 25 Pair Cables
What were
they thinking?
I thought the customer who
called was joking. He said he needed a cable for an NEC phone system that
had six RJ61 8 pin plugs.
RJ61 plugs use USOC wiring that
hasn't been used in the US in decades. There are essentially no
8 pin USOC jacks or patch cables used in the US (we do stock an 8 Pin USOC
Surface Mount Biscuit Jack).
The Chinese engineers that NEC
hired to design this system obviously had no idea what they were doing (but
they were probably cheap). They looked in a book and came up with the RJ61.
Totally clueless, with no idea of how the system would be installed in the
field (a common theme with engineers!).
If they would have chosen to use
an 8 pin plug with 568B wiring, the same that's used in CAT5, there would be
lots of options an installer could use. In this case, there is no other
option to do it correctly without using the Mod 8 cable, or making his own
patch cords.
If you use a CAT5 patch cord in
the 8 pin jacks on these NEC systems it will probably work, but the wires
won't be paired. Actually, they'll be paired wrong, so
depending on the length of the CAT5 patch cord, you could end up with
crosstalk between the ports... Crosstalk you can hear on trunks or maybe
strange operation on the digital phone sets. Probably not worth taking the
chance since troubleshooting those problems would be very difficult (and
expensive!).

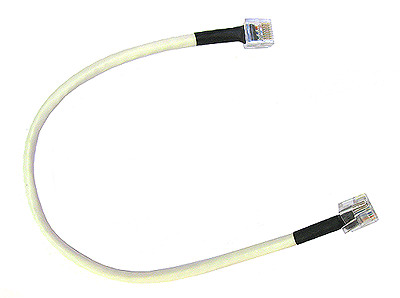

The Mod 8 Cable gives you
four ports on each 8 pin plug, with 24 ports total on the 25 pair cable.
When you punch down the cable on a 66 block (or use our Connectorized Mod
8 Cable), you'll have ports 1 to 24 in order going down the block.
NOTE: We're no longer stocking these MOD8 part numbers (use the
above QWIK Cable™ part number), but we'll make them for you if you've
bought them before and want us to duplicate an order.
15'
Mod 8 Cable to an Open End (No AMP Connector)
15' Overall Length.
Part Number: MMA1G Price: $46.50 |||
3+ Price: $45.50
30'
Mod 8 Cable to an Open End (No AMP Connector)
30' Overall Length.
Part Number: MMA1H Price: $65.50 |||
3+ Price: $64.50
Get
the
MOD 8
Cable with a Male AMP
Connector!
You won't have to punch
down the cable... Really speeds up installation!
Just plug it into a Connectorized 66
Block with one or two female AMP connectors (connectorized
blocks are farther down the
page):
66 Block Not Included
6' Mod 8 Cable to a Male AMP
Connector
Use this if you're mounting a
block right next to the KSU. 6' Overall Length.
Part Number: MMA1I Price:
$44.50 |||
3+ Price: $43.50
15'
Mod 8 Cable to a Male AMP Connector
15' Overall Length.
Part Number: MMA1J Price: $55.15 |||
3+ Price: $54.15
30'
Mod 8 Cable to a Male AMP Connector
30' Overall Length.
Part Number: MMA1K Price: $73.50 |||
3+ Price: $72.50
25 Port 1RU RJ-11 (1 Pair Mod
Jack) Patch Panel with Telco Connectors
for 25 Pair Cable
For use with
25 Pair Connectorized Cables for 1
Pair Telephones...
1RU
25 Port RJ-11 Patch Panel with
Telco Connectors- Front
25
- 1 Pair RJ-11 Modular Jacks
Will
NOT fit in 4" Deep Hinged Bracket!
Use our 12" Deep Hinged Bracket, or Floor Mount Rack
(below)
1RU 25 Port RJ-11 Patch Panel with
Telco Connectors - Rear
19" Rack Mount 1RU (1.75"). 4" Deep (without AMP Connector).
Stack them up in your rack.
Has
both 1 Male and 1 Female AMP Connector, which are
bridged together.
Having
both a Male and Female connector means you can use
either a Male
or Female 25 Pair Connectorized
Cable, or you can use a second
25 Pair Cable right off the back of the patch panel to a Silent
Monitoring or Call Logging system... without using a CPC Y
Adapter Cable (below).

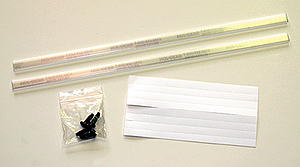

Supplied with Desi Holder, Desis and Screws
Part Number: DSI3S Price: $229.95
24 Port 1RU RJ-14 (2 Pair Mod
Jack) Patch Panel with Telco Connectors
for 25 Pair Cable
For use with
25 Pair Connectorized Cables for 2
Pair Telephones...
24 Port 1RU RJ-14 Patch Panel
with
Telco Connectors
24 - 2 Pair RJ-14 Modular Jacks
19" Rack Mount 1RU (1.75").
Has 2 Female AMP Connectors on Rear (12 ports per connector).
Supplied with Desi Holder,
Desis and Screws.
Part Number: DSI3T Price: $229.95
25 Pair
CAT5e
Custom Connectorized Cable
(takes about a week
for us to make it)
 |
 |
 |
|
90 Degree
Female |
110 Degree Male |
180 Degree Male |
 |
 |
|
25 Pair
CAT5 Cable is Silver/Gray with a Spine to Reduce Crosstalk |
CAT5e
Cables can have a 90° Female (only), or 110° or 180° Male Connectors (only).
These are special connectors that are different from regular CAT3
25 pair connectors, but they will plug into a CAT3
connector.
Stocked
Double Ended 25 Pair CAT5e Connectorized Cables...
These all have 90 Degree Females to
110 degree Males (we have one of each made-up that can
ship the same day if you call before 2:30PM Chicago time), but we can custom make whatever
you'd like (takes about a week):
| Size |
Price |
|
|
|
|
25 C90 P110-5':
25 C90 P110-10':
25 C90 P110-25':
25 C90 P110-50':
25 C90 P110-100': |
$ 82.00
$ 92.00
$122.00
$179.95
$272.00 |
|
|
|
|
| P = Plug (Male) • C =Connector (Female) |
Custom 25 Pair CAT5e Cable Pricing
(takes about a week for us to make it):
90 Degree Female, 110 Degree Male or
180 Degree Male Connector - Per End: $36.00
You need two ends on a Double Ended Cable,
for $72.00.
1 Foot of CAT5e 25 Pair Cable - Per
Foot: $2.00
CAT5e 24 Port 1RU Patch Panel
with Telco Connectors for CAT5 25 Pair
Cable
For use with
25 Pair CAT5 Connectorized Cables... Each Jack has All 8
Conductors!
CAT5e 1RU 24 Port Patch Panel
with
Telco Connectors- Front
CAT5e 1RU 24 Port Patch Panel with
Telco Connectors - Rear
19" Rack Mount 1RU (1.75").
Stack them up in your rack. Has 4 Female CAT5 AMP Connectors on Rear.

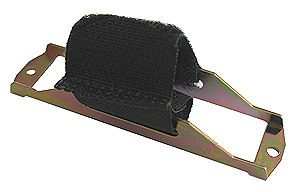

Use 110
Degree Male CAT5 AMP Connectors which are secured with Velco,
or use 180 Degree Male CAT5 AMP Connectors which are secured with
screws.
Part Number: DSI3R Price:
$329.95
CAT5e 48 Port 2RU Patch Panel
with Telco Connectors for CAT5 25 Pair
Cable
Closeout...
Very Limited Quantity at this Great Price:
CAT5e 2RU 48 Port Patch Panel
with
Telco Connectors- Front
CLOSEOUT!
Each Jack has All 8
Conductors!
CAT5e 2RU 48 Port Patch
Panel with
Telco Connectors- Rear
19" Rack Mount 2RU (3.5").
Has 8 Female CAT5 AMP Connectors on Rear (1 per 6 CAT5e Jacks).
Use 110
Degree Male CAT5 AMP Connectors which are secured with screws (no Velcro),
or use 180 Degree Male CAT5 AMP Connectors which are secured with
screws.
When these are gone, we're only
going to stock the 24 Port 1 RU CAT5e Patch Panels (above).
Part Number: DSI3Q Price:
$289.95 - Limited Quantity at a super low price!
19" RACK MOUNT BRACKETS
For use with
Standard Patch Panels

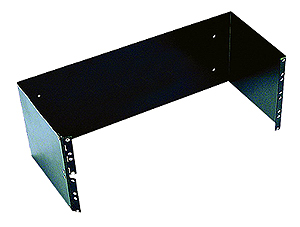

19" Hinged
Brackets
4" Deep
Make sure your Patch Panel/Equipment isn't too deep!
See the 12" Deep Non-Hinged Rack
(below), or Floor Mount Rack (below)
These Brackets use
10/32 Screws. Order our Part number MIS8R for a pack of 10 screws.
1RU (1.75" High) 19" Bracket - 4" Deep
Part Number: CHM9M Price: $21.95

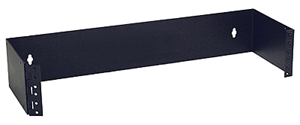

2RU (3.5" High) 19"
Bracket - 4" Deep
Part Number: CHM9N Price: $28.95
4RU (7" High) 19"
Bracket - 4" Deep
Part Number: MIS8D Price: $36.95

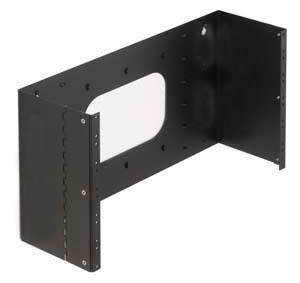

6RU (10.5" High) 19" Bracket - 4" Deep
Part Number: MIS8E Price: $49.95
NON-HINGED 19" RACK
MOUNT BRACKET - 12" DEEP
19" Rack Mount Bracket - Non-Hinged!
12"
Deep
This
Bracket uses 10/32 Screws.
Order our Part number MIS8R for a pack of 10 screws.
Part Number: MIS8G Price: $69.95

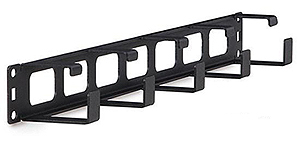

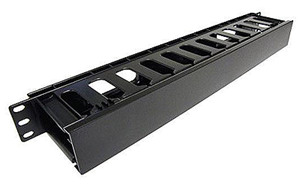

19" RACK MOUNT WIRE MANAGERS
19" Rack Mount Wire Managers
1RU (1.75" High) 19"
Wire Manager
Part Number: CHM9M Price: $21.95

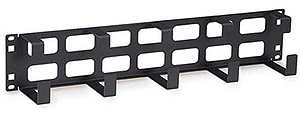

2RU (3.5" High) 19" Wire Manager
Part Number: CHM9N Price: $28.95
10" DEEP SHELF FOR 19" RACK...
OR MOUNT TO WALL WITH SCREWS
10" Deep Shelf
Mount it to a 19" Rack
(facing in or out), or Mount
it Directly to a Wall
Part Number: CHM9Q Price: $42.95
19" FLOOR MOUNT RACK
84" Tall Black
Aluminum 19" Floor Mount Rack
Will sit on the floor, but you
usually want to bolt it down (holes provided in base).
Uprights can be cut and drilled easily (it's aluminum) if you need a
shorter rack.
This rack uses 10/32 Screws.
Order our Part number MIS8R for a pack of 10 screws.
Part Number: CHM9L Price: $159.95
CAT5 & CAT6 Jacks & Patch
Panels with 110 Punchings (not Telco Connectors)
Most Patch Panels used today have 110 Punchings,
but sometimes 25 Pair Telco Connectors really speed things up!
Click
HERE for our CAT5 & CAT6 Jack / Patch Panel Page, for Patch Panels with 110
Punchings
SCREWS & CLIPS for
RACKS / PATCH PANELS
Bag of 10: 10/32 by
5/8" Black
Screws
Used in our (and most) 19"
Wall Mount Brackets and Racks
Part Number: MIS8R Price: $2.99
Bag of 10: 12/24 by 5/8"
Black Screws
Part Number: MIS8S Price: $2.99
Bag of 10: 12/24 Tinnerman Clips
Slide this over the metal by a
non-threaded hole, and you've got a threaded hole!
Is for 12/24 machine
screws (not 10/32!).
Part Number: MIS8T Price: $5.99
BULK
Cut Cable with no connectors:
Bulk 25 Pair
CAT3 PVC (Regular) Cable (with no connectors) - Cut to Length:
Part Number: MSC9Q Price:
$1.39
per foot
Bulk 25 Pair
CAT3 Plenum Rated Cable (with no connectors) - Cut to Length:
Part Number: DSI4J Price: $1.96
per foot
Bulk 50 Pair
CAT3 Cable (with no connectors) - Cut to Length
Part Number: DSI4G Price:
$2.25
per foot
Bulk 100 Pair
CAT3 Cable (with no connectors) - Cut to Length
Part Number: DSI4H Price:
$4.29
per foot
Bulk 25 Pair
CAT5e
Cable (with no connectors) - Cut to Length
Part Number: DSI5N Price: $2.00
per foot
CAT5 25 Pair Cable has a spine, with each of
the 25 pairs evenly spaced around the spine.
A single pair is only next to two other pairs - not
bundled together like regular CAT3 25 pair cable, which reduces crosstalk
(NEXT / FEXT).
GOOF Plug - Male to Male
or Female to Female Adapter
What are you going do when you screw up?
GOOF Plug - Male
to Male
AMP Connector
Part Number: CLN7S Price: $23.95
GOOF
Plug - Female to Female
AMP Connector
Part Number: CLN7T Price: $23.95
NOTE:
The 1/2 Ft. GOOF Cable™ is much cheaper (below)!
GOOF Cable™ - Male to Male
or Female to Female - Very
Short 25 Pair Cable
Short GOOF
Cable™ - Male
to Male AMP Connector
Part Number: DSI4T Price: $11.95
Short GOOF
Cable™ - Female to Female AMP Connector
Part Number: DSI4S Price: $11.95
25 PAIR "Y" ADAPTER CABLES - CPC or PCP
Female - Male - Female
(CPC) 25 Pair Y Cable -
CPC Adapter
This is the Adapter to put two
1A2
phones on a single 25 Pair Cable
Part Number:
CLN7R Price:
$39.95
Male - Female - Male
(PCP)
25 Pair Y Cable - PCP Adapter
Part Number:
CLN5P Price: $39.95

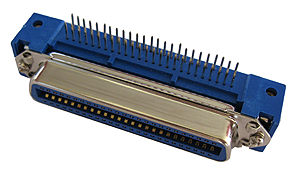

AMP Connectors
Got your own AMP Champ Tool?
These only work in AMP and
Cinch Brand
Tools!
We can ship you custom cut lengths of raw
25, 50 100 and 200 pair cable
90
Degree Male
AMP Connector
Part Number: SER6A Price: $4.19
90
Degree
Female
AMP Connector
Part Number: SER6B Price: $4.19
180
Degree Male
AMP Connector
Part Number:
SER6Q Price: $8.59
180
Degree Female
AMP Connector
Part Number:
SER6R Price: $8.59
180
Degree Male
AMP Connector with Bail Lock
Sometimes called Bale Lock, baillock, or balelock.
The notches at the sides are for the
female connector that's normally on a piece of equipment. This is like the
old Centronics printer cables, but they are 50 pin instead of 36 pin.
Part Number:
MSC8M Price: $8.95
180
Degree Female
AMP Connector with Latch Lock
Sometimes called Latchlock, or female bale lock. This has the flip-up
wire locks.
Part Number:
MMA9N Price: $8.95
66 Blocks, & 66 Blocks
with AMP & Modular Connectors
66 Block Types:
|
Non-Split Block (all
pins attached) |
Split Block
(right & left pins separate) |
| |
|
|
|
|
|
Pair Punches Down on Left,
Phones on Right Clips
|
Pair Punches Down on
Outside, Phone on Next Clip
|
| |
|
|
|
|
|
An M-Block has 4
Clips Across • A B-Block has 6
Clips Across
|
|
On a Non-Split Block
the clips are all attached • On a Split Block the left and
right clips are separate |
| |
|
|
|
|
1/2 M-Block with
Bracket
|
1/4 (or 1/8) B-Block with
Brackets
|
|
You don't have to
use a bracket, but it makes it easier to install the block and dress
the wires. |
66M Blocks
(4 Pins Across):
66M Split 50 Pair Block -
CAT5 Rated - WHITE
66M1-50 Block •
White • No Cover
NOTE:
This is the lowest priced block because there are a ton of them made
compared to all of the other 66 Blocks!
Part Number:
CLN9H Price:
$7.95 |||
20+ Price: $7.44
66M Split 50 Pair Block -
CAT5 Rated - WHITE - With
Snap-on
Cover
66M1-50 Block •
White • With Snap-on Clear Cover Marked CAT5
Part Number: CLN9E Price:
$8.95 |||
20+ Price: $7.95
66M Split 50 Pair Block -
CAT5 Rated - BLUE - With
Snap-on
Cover
66M1-50 Block •
Blue • With Snap-on Clear Cover Marked CAT5
Part Number: CLN9F Price:
$9.49 |||
20+ Price: $8.49
66M Non-Split 25 Pair Block
- CAT3 Rated - WHITE
66M1-25 Block •
White • No Cover
Part Number: CLN9G Price:
$11.99 |||
20+ Price: $10.99
1/2 66M Split 24 Pair Block
- WHITE (Short 66 Block)
66M4-24 Block •
White • No Cover (Bracket and Covers
Available)
Part Number:
CLN7P Price:
$9.95 |||
20+ Price: $9.45
66M
Block Brackets:
89D Bracket
For Full-size 66M Block.
This Bracket allows you to remove a wired
punched down block from the Bracket.
This is the most popular
66M Block Bracket.
Part Number: CLN9B Price:
$1.65 |||
20+ Price: $1.49
89B Bracket
For Full-size 66M Block.
This Bracket doesn't allows you to remove a
punched down block from the Bracket,
since the wires end up going through a tunnel.
Part Number: CLN9A Price:
$1.39 |||
20+ Price: $1.26
1/2 66M Block Bracket
- 89E Bracket
For 1/2-size 66M Block.
Part Number: CLN7Q Price:
$3.29 |||
20+ Price: $2.99
66B
Blocks (6 Pins Across):
66B Split 50 Pair Block -
WHITE
66B3-50 Block •
White • No Cover
Part Number:
CLN9J Price:
$18.99 |||
20+ Price: $17.99
66B Non-Split 25 Pair
Block - WHITE
66B4-25 Block •
White • No Cover
Part Number:
CLN9I Price:
$16.95 |||
20+ Price: $15.50
1/4 66B Split
12 Pair Block
- WHITE
66B1-12 Block •
White • No Cover Available
Part Number:
CLN7A Price:
$11.99
1/4 66B Non-Split 6 Pair
Block - WHITE
66B1-6 Block •
White • No Cover Available
Part Number:
CLN90 Price:
$12.95
1/8 66B Non-Split
3 Pair
Block - WHITE (Very
Short Block - Only 6 Pins Down!)
66B4-3 Block •
White • No Cover Available
Part Number:
CLN8E Price:
$9.95
66B Block Bracket:
66B Block Bracket
NOTE:
Use two for one 66B
Block, or use three for two 66B Blocks
Part Number: CLN9C Price:
$1.89 |||
20+ Price: $1.74
66M Split 50 Pair Block with
Connector(s):
|
 |
 |
|
Each
Connectorized 66 Block we make
is tested by humans on a sophisticated electronic cable tester
that checks each pin on the block. |
66M Split Block with 1 Female
AMP Connector and Bracket
NOTE:
This is the block used
for an RJ-21X (which normally has an Orange Cover
- ordered separately)
Part Number: SER6F Price:
$31.95
66M Split Block with 1 Male
AMP Connector and Bracket
Part Number: SER6G Price:
$31.95
66M Split Block with 2 Female
AMP Connectors and Bracket
Part Number: SER6I Price:
$39.95
66M Split Block with 2 Male
AMP Connectors and Bracket
Part Number: SER6H Price:
$39.95
66M Split Block with 6 RJ-45
(WECO/568B) Modular Jacks and
Bracket
All 6 Jacks are on one side
of the block, and are punched down to the left side of the Block.
Part Number: SER6M Price:
$45.95
66M Split Block with 12 RJ-45
(WECO/568B) Modular Jacks and
Bracket
The 12 Jacks are on both sides
of the block, and are punched down to both sides of the Block.
Part Number: SER6N Price:
$59.95
66M Split Block with 12 RJ-14
(USOC) Modular Jacks and Bracket
The 12 Jacks are on both sides
of block (8 on one side, 4 on the other), and are punched down to
just the left side of the block.
Part Number: SER6P Price:
$45.95
RJ-71C Special 66M Split Block
with Female Connector and Bracket and Shorting Plug
RJ71C 12 Pair Network Interface
Block for building entrance and other special applications where the phone lines
pass through the equipment.
Has a Female Connector on the side.
Comes with a
special Shorting Plug that you put on the connector on the side of the block if
you remove the equipment, which normals through the 12 telephone lines. The 13th
pair on block isn't used.
Order
cover if needed separately, below (normally has an Orange Cover).
Part Number: MSC9D Price:
$48.95
RJ-71C Shorting Plug (Only)
Replacement Shorting Plug in case
you lost the one that came with the block, so you can remove the equipment for
testing or repair (or permanently). Ask about quantity pricing.
Part Number: MSC9E Price:
$12.95
Bridging Clips
Bridge Clip for 66 Blocks
You Need 2 Per Pair!
Bridges a single set of pins
together on the right and left sides of a 66M or B Split Block.
When used on an RJ21X, it allows
the technician to disconnect the phone equipment from the phone line for
testing purposes (to make sure a problem is in the phone line, not in the
equipment).
Use a Spudger ($1.59
each) to remove the Clips easily.
Don't squeeze the Clips hard when removing them with a long nose pliers,
or you'll distort them.
Sold in a Bag of 100:
Part Number:
SWI6D Price: $7.99
1 Pair Bridging Clips
1 Pair Red Insulated Bridge Clip Assembly for 66 Blocks
You Need 1 Per Pair!
Bridges two set of pins (a
full pair) together on the right and left sides of a 66M or B Split
Block. They can stack on the 66 block, to cover a full 25
pairs.
Insulated plastic housing holds
two bridge clips (included). Small handle in front makes removal easy.
Sold Individually:
Part Number:
MIS3B Price: $.60 each |||
20+ Price: $.56
66 BLOCK SPECIAL SERVICE MARKER - RED
66 Block Special Service Marker - RED
Bag of 20
Lets the phone man
know these are important lines, and insulates the 66 pins to
help prevent the line from being shorted accidentally.
These are plastic, non-conductive. They
aren't bridging clips.
Part Number: MIS2S Price:
$8.29
66 BLOCK SPECIAL SERVICE MARKER - YELLOW
Same as above, in
YELLOW
These are plastic, non-conductive. They
aren't bridging clips.
Bag of 20
Part Number: MIS2T Price:
$8.29
66 Block Covers - Hinged and
Snap-on
66M Hinged Cover
Colors:
- Gray
- Orange
- Green
- Ivory
- Clear
- Blue
- Yellow
- Violet
- Red
Lift the Cover off the
Hinge to remove the Cover, to punch down wires.
Price:
$2.19 |||
20+ Price: $1.99
1/2 66M Block Hinged Cover -
ORANGE
For 1/2-size 66M Block - Orange
Lift the Cover off the
Hinge to remove the Cover, to punch down wires.
Part Number: CLN5S Price:
$1.79 |||
20+ Price: $1.69
1/2 66M Block Hinged Cover -
GRAY
For 1/2-size 66M Block - Gray (Same
as Orange above)
Lift the Cover off the
Hinge to remove the Cover, to punch down wires.
Part Number: CLN5T Price:
$1.79 |||
20+ Price: $1.69
66M
Snap-on Clear Cover
Clear Cover for the M-Block
Part Number:
CLN9R Price: $1.19

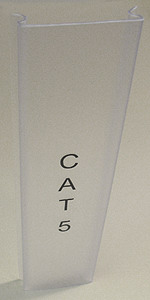

66M
Snap-on Clear Cover with CAT5 Label on front - CLOSEOUT!
Clear Cover for the M-Block: Says
CAT5 on it - Limited
Quantity
Part Number:
CLN6C Price:
$.44 |||
100+ Price: $.30
That's
right - only 30¢
each!
66B
Snap-on Clear Cover
Clear Cover for the B-Block
(6 Pins Across)
Part Number:
CLN9Q Price: $1.49
66 Block Desi Strips
Snaps over the edge of the 66
Block
25 Lines on a White Plastic Desi
Strip. Write what you need on the Strip with a Sharpie.
You MUST remove the Desi Strip
to get the wires onto the block, and then snap it back on.
66M
Desi Strip
Part Number:
CLN9T Price: $.59
66B
Desi Strip
Part Number:
CLN9S Price: $.62
66E3-25 Punch Down and
AMP Connector Block
66E3-25 Block •
Gray Cover • Female AMP Connector with Metal
Keeper Bracket
No AMP type tool needed to terminate
the cable at the station. Just run raw 25 pair cable, punch it down on the
block, and you get a female connector for the phone.
This was how all 1A1 and 1A2 phones
were originally installed many years ago (using the 66 Punch Tool with no clunk
- you hit it with the heel of your hand to cut the wires).
The price is insane, but that's
because there are very few used today... and there's no economy of scale.
Part Number: CLN9D Price:
$59.95

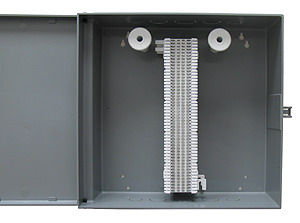

66 Block House Cans
Single & Double Block Metal
House Can with Cover
Use a 66B or 66M Block in these
cans. Knockouts on rear for wires.
Single Block House Can
Part Number: CLN7F Price:
$43.95
Double Block House Can
Part Number: CLN7G Price:
$46.95
Waxed String
for Cable Lacing
525' Roll Of Waxed String
White
Use for bundling wires, and also
a popular tool for fishing walls.
Put a big nail at the end to
fish walls. In the old days, guys would
wrap solder around the end of the cable to weight it down so it
would go straight down the wall.
Used instead of Tie Wraps in the
old days (before Tie Wraps existed), and in Central Offices (and for special
equipment)
these days.
Sorry, we don't have
instructions on how to use Waxed String on telephone cables. See our
Lacing Needles (below)
NASA has a good document on
using waxed string for lacing cables (hard to do service calls on
spacecraft!):
NASA Cable Lacing Instructions (PDF)
Part Number:
HND8F Price: $9.95 |||
3+ Price: $9.50

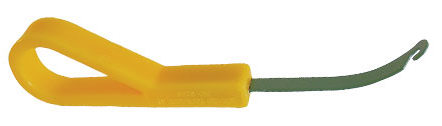

Curved
Insulated
Lacing Needle
Use the Curved Insulated Lacing Needle
to grab and pull the Waxed String through a loop.
Part Number:
MMA3K Price: $9.95
Straight
Non-Insulated
Lacing Needle
Use the Straight Non-Insulated Lacing
Needle to pull the Waxed String through loops.
Sometimes referred to as a
"Chicago Style" Lacing Needle. Needle is .016" thick and 12" long.
Yes, it looks like a hacksaw
blade, but it's not. Teeth or sharp edges would cut the string right away!
Part Number:
MMA3L Price: $8.95

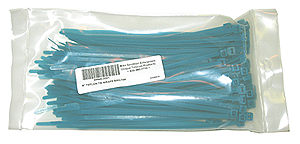

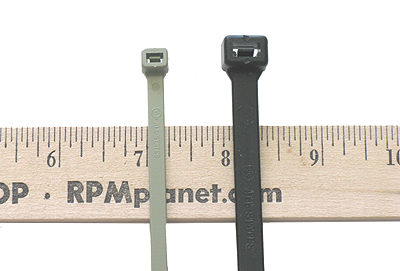

Tie Wraps
and Tie Wrap Mounts
I personally only use
Telephone Gray Tie Wraps
when building a frame (to match
the wire color), but we also have
Black and Natural Tie Wraps
All of our Tie Wraps and
Mounts
are made right here in the Chicago area!
Some Tie Wrap Facts:
-
Tie Wraps
shouldn't be left in the sun (like on a dashboard or seat). The
nylon material will dry out, making the Tie Wrap brittle and
break when it's tightened. You can fix dried out Tie Wraps by
putting a few drops of water in the bag and sealing it. They nylon will
absorb the moisture, and the Tie Wrap will be good as new.
-
Tie Wraps will
dry out if left in an opened bag.
Use them up, or put a couple of drops of water in the bag and reseal it.
Clear packing tape works OK. Seal it well so it's air tight.
-
Tie Wraps shouldn't
be left in freezing weather. The moisture in the nylon will create
microscopic cracks that will permanently damage the Tie Wrap.
They'll be more likely to break when tightened.
-
All of our Tie Wraps
are packed in bags of 100 even if we sell them in 500
quantity, since you don't want to open a bag and have it laying around,
drying out. Work out of one bag as much as possible!
-
It's best to use
Telephone Gray or Black Tie Wraps outside. They are UV
resistant, and are better than Natural outside.
-
Once a Tie Wrap is
tightened on cable (indoors, that doesn't move), the Tie Wrap
will dry out but hold the cable just fine since there's no motion. Don't
over tighten the Tie Wrap, which will deform the cable.
-
Use our Velcro Tie Wraps
on CAT5 or CAT6 cable, since deforming data cable can
effect Ethernet speeds (voice usually doesn't care unless you get crazy
tightening the Tie Wrap).
5" Natural
Tie Wrap - Small
Bag of 100 - 1/8" Wide
Natural
Part Number:
SER4K Price: $2.99
5" Black
Tie Wrap - Small
Bag of 100 - 1/8" Wide Black
Part Number:
SER4J Price: $2.99
8"
Standard Size Tie Wraps...
Telephone Gray, Black & Natural
8" Telephone Gray
Tie Wrap
Standard Size Tie Wrap
8"
Telephone
Gray Tie Wrap
500 Quantity - Packaged in
Bags of 100 Tie Wraps
Part Number:
SWI4P Price: $15.00 (for 500)
8"
Black Tie
Wrap
500 Quantity - Packaged in
Bags of 100 Tie Wraps
Part Number:
SWI4H Price: $15.00 (for 500)
8"
Natural
Tie Wrap
500 Quantity - Packaged in
Bags of 100 Tie Wraps
Part Number:
SWI4D Price: $15.00 (for 500)
11" Telephone
Gray Tie Wrap
Thin
11" Telephone Gray
Tie Wrap
Just like the
Phone Company uses
This is the handiest
Tie Wrap to carry! It's longer than a regular 8"
Tie Wrap so you won't have to put two together for bigger bundles,
and thinner (about half the width of the 8" Tie Wrap...see the picture of
both sizes of Telephone Gray Tie Wraps above) since we don't need
lots of strength to hold bundles of telephone wire.
Sold in Bags of 100 Tie Wraps
- 11" Only Available in Telephone Gray Color
Part Number:
SWI2D Price: $5.69 |||
10+ Price: $5.49
14"
Natural Color
Tie Wrap
Same as our 8" Tie Wrap, but
14" in Length
Sold in Bags of 100 Tie Wraps
- 14" Only Available in Natural Color
Part Number:
SWI4R Price: $5.99
18" Black
Heavy Duty Tie Wrap -
LARGE!
This is a LARGE
Tie Wrap... Compared to a standard 8" Tie Wrap
175 lb. rated. Only Available in Black
Bag of 100 18" Heavy Duty
Tie Wraps.
Part Number:
MSC3J Price: $16.95
28" Black
Heavy Duty Tie Wrap -
LARGE!
175 lb. rated. Only Available in Black.
We stock one bag. Takes a few days to get more.
Bag of 100 28" Heavy Duty
Tie Wraps.
Part Number:
MSC3I Price: $39.95
8"
Natural
Color Tie Wrap
with Mounting Hole
8" with Mounting Hole
Only Available in Natural Color
Sold in Bags of 100 Tie Wraps
with Mounting Hole
Part Number:
SWI4F Price: $5.50
Tie Wrap Mount -
Natural Color
Tunnel Type Tie Wrap Mount... The
Fastest and Easiest to Use!
Sold in Bags of 100
Natural Color Mounts
Part Number:
SWI4Q Price: $6.99
Tie Wrap
Mount - Black Color
Black Tunnel Type Tie Wrap Mount
Sold in Bags of 100
Black Color Mounts - Same as Natural Color Mount
(Above)
Part Number:
SER8N Price: $9.95
Teflon
Tie Wraps
Teflon Tie
Wraps are Required
in Air Plenum Return
Ceilings
When standard Tie
Wraps burn, they lot off toxic gas. If they're in a ceiling that's
used for the air return on the HVAC system (where the returns aren't
ducted), they will distribute the toxic gas to other spaces that aren't on
fire, where the people will die (even though there's no fire). You would use
Teflon cable in air plenum return ceilings, for the same reason.
Teflon doesn't let off toxic gas
when it's burned, so it's safe to use in the plenum return to bundle cables.
You don't want to use in premises with a ducted
return, since they're incredibly expensive!
8" Teflon
Tie Wraps
Standard size Tie Wrap
with a special
Turquoise Color indicating they're for
Plenum use.
8" Teflon
Tie Wrap
100 Quantity
Part Number:
SWI4E Price: $54.95 (for 100)
11" Teflon
Tie Wrap
100 Quantity
Part Number:
SWI2T Price: $73.95 (for 100)

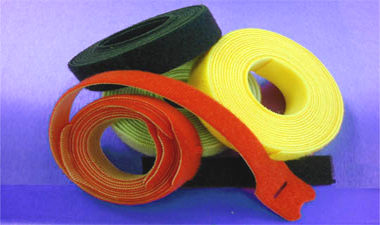

8"
Velcro Tie Wraps
Black, Red, Orange,
Yellow, Blue, Violet,
Gray, White
Can be screwed to a wall,
backboard, or rack uprights
Sold in Rolls of 10
Price: $5.99 a Roll of 10 |||
10+ Roll Price: $5.79
12"
Velcro Tie Wraps
Black Only... for Bigger
Bundles
Can be screwed to a wall,
backboard, or rack uprights
Sold in Rolls of 10
Part Number:
SER8P Price: $8.99 a
Roll of 10 |||
10+ Roll Price: $7.99
Tie Wrap Pouch
With Police Style Metal Belt Clip
Holds 8" or 11" Tie Wraps
Velcro Flap
Part Number:
HND1S Price: $10.95 |||
3+ Price: $9.95
MUSHROOM SPOOL with WOOD SCREW
For Dressing Cross Connect Wires
on Frames
Wood Screw Molded Into Mushroom
Part Number:
CLN7I Price: $.99 |||
20+ Price: $.89
MUSHROOM SPOOL with NO SCREW
For Dressing Cross Connect Wires
on Frames
Use your own screw
Part Number: CLN7H Price:
$1.09 |||
20+ Price: $.99
OPEN METAL D-RINGS
Don't use Plastic - They Break!
1/2 Open 4" Distribution Ring
For Dressing Cross Connect Wires
on Frames
Part Number: KIT9T Price: $1.49
3/4 Open 4" Distribution Ring
For Dressing Cross Connect Wires
on Frames
Part Number: KIT9R Price: $1.69
Backboard D-Ring
Hard to Find D-Rings for Routing Cross-Connect Wire and
Cable Bundles. Single Screw Mount.
NOTE: May be in
Black rather than Telephone Gray.
400 Pair Backboard
D-Ring:
Part Number: MSC5T Price: $2.19
200 Pair Backboard
D-Ring:
Part Number: MSC5S Price: $2.09
100
Pair Backboard
D-Ring:
Part Number: MSC5R Price: $1.79
CLOSED METAL D-RINGS
Don't use Plastic - They Break!
3" (2" Inside) Metal
Distribution Ring
For Dressing Bundles of Cables
Part Number: KIT9P Price: $2.10
4" (3" Inside) Metal
Distribution Ring
For Dressing Bundles of Cables
Part Number: KIT9S Price: $2.49
6" (5" Inside) Metal
Distribution Ring
For Dressing Bundles of Cables
Part Number: KIT9Q Price: $2.99
BLUE / GRAY 814 TYPE PUNCH TOOL with 66 and 110 BLADES
Blue / Gray Punch Tool
with 66 and 110 Blades
Highest Quality Punch Tool with industry standard Twist-to-Release Blades.
Heavy Duty Punch Tool has High/Low Impact Selector, and a Cavity in the Top to store a 66 or 110 Blade (both are included).
Spare Blade locks into the Cavity in the tool, and releases easily with a twist of the Release Knob.
Uses industry standard 814 Type Blades.
NOTE: You MUST use a Punch Tool to terminate wires onto 66, 110, BIX and Krone Blocks and Jacks. If you use a screwdriver to force the wire into the connection, you'll destroy the connection (spreading out the pin), causing strange intermittent problems until the Block is replaced.
Part Number: HND9D Price: $47.95
BLUE / GRAY 814 TYPE PUNCH TOOL with 66 BLADE
Same Punch Tool as above, but with just a 66 Blade (no 110 Blade).
Part Number: HND9E Price: $44.99
66 BLADE for 814 TYPE PUNCH TOOL
Replacement 66 Punch Blade
Industry standard 66 Blade. Flip it around for CUT or NON-CUT.
Part Number: HND9F Price: $14.95
110 BLADE for 814 TYPE PUNCH TOOL
Replacement 110 Punch Blade
The 110 Blade is used on 110 Blocks, and just about all of the CAT5 and CAT6 Keystone jacks made.
Industry standard 110 Blade. Flip it around for CUT or NON-CUT.
Part Number: HND9G Price: $14.95
950C Cosmic Frame Punch Tool
3-in-1 Central Office
Cosmic & Cosmic II
Frame Punch Tool
For:
• 78 Type (4 Beam) Blocks
•
112 Type (3 Beam) Blocks
With Wire Cutter (22 & 24 Gauge) and Hook for jumper wire and back-tap removal.
This Punch Tool doesn't work with ANY
other types of punch blocks. You probably DON'T need it!
Part Number: MMA3I Price: $134.95
950C PUNCH TOOL
REPLACEMENT BLADE
Yes, I know it's unbelievably expensive!
This is a special order, and takes about a week to ship (the
950C tool itself is normally in-stock).
Part Number:
MMA3J Price: $84.95
AMP (Male) to Modular
Adapters
2, 3 and 4 Pair Modular
Adapters
(Special Wiring
Available)
AMP Male
to 2 Pair Modular
Jack Adapter
Modular Jack is
connected to the first 2 pairs of the AMP Connector
Special wiring configurations
are available in quantity.
Part Number:
SER3Q Price: $5.79
AMP Male
to 3 Pair Modular
Jack Adapter
Modular Jack is
connected to the first 2 pairs, and the last pair of the AMP Connector
Special wiring configurations are available in quantity.
Part Number: SER3R
Price: $6.19
AMP Male
to 4
Pair (WECO/568B) Modular Jack Adapter
Modular Jack is
connected to the first 4 pairs of the AMP Connector (Wired WECO/568B)
Special wiring configurations
are available in quantity.
Part Number:
SER3S Price: $6.99
HARMONICA - Modular to AMP
Connector Adapters
With Velcro
keeper for AMP Connector
Screw holes allow
wall mounting
HARMONICA - 12 2 Pair Jacks with a MALE
AMP Connector
Part Number: SER5A Price:
$19.95
HARMONICA -
12 2 Pair Jacks with a FEMALE
AMP Connector
Part Number: SER5B Price:
$19.95
HARMONICA -
8 3 Pair Jacks with a MALE
AMP Connector
Part Number: SER5C Price:
$19.95
HARMONICA -
8 3 Pair Jacks with a FEMALE
AMP Connector
Part Number: SER5D Price:
$19.95
HARMONICA -
6 4 Pair Jacks with a MALE
AMP Connector
Part Number: SER5E Price:
$19.95
HARMONICA -
6 4 Pair Jacks with a FEMALE
AMP Connector
Part Number: SER5F Price:
$19.95
HARMONICA -
12 RJ-45 Jacks wired with 2 Pairs for 10/100 Base-T
with a MALE
AMP Connector
Part Number: SER5G Price:
$21.95
HARMONICA -
12 RJ-45 Jacks wired with 2 Pairs for 10/100 Base-T
with a FEMALE
AMP Connector
Part Number: SER5H Price:
$21.95
Modular Jack Panel - 25 Modular Jacks to AMP Connector(s)
Mounts to Wall
JACK PANEL - 25 1
Pair RJ-11 Modular Jacks with a MALE
AMP Connector
Part Number: SER5I Price: $64.95
JACK PANEL - 25 1
Pair RJ-11 Modular Jacks with MALE
& FEMALE
AMP Connectors
Male and Female
Connectors are Bridged Together
Part Number: SER5J Price: $69.95
OCTOPUS Cables - 6' Modular Cables to an AMP Connector
Also called a Hydra Cable
6' Modular Cables
Each Mod Plug is Numbered
With MALE
or FEMALE
AMP Connector
OCTOPUS Cable -
12 4 Conductor Modular Plugs
with
a
MALE
AMP Connector
Part Number:
SER5M Price:
$36.95
OCTOPUS Cable -
12 4 Conductor Modular Plugs
with a
FEMALE
AMP Connector
Part Number: SER5N Price: $36.95
OCTOPUS Cable -
25 2 Conductor Modular Plugs
with a
MALE
AMP Connector
Part Number: SER5S Price: $49.95
OCTOPUS Cable -
25 2 Conductor Modular Plugs
with a
FEMALE
AMP Connector
Part Number: SER5T Price: $49.95
OCTOPUS Cable -
6 8 Conductor Modular Plugs
with a
MALE
AMP Connector
WECO 568B Wiring
Part Number: MMA1M Price: $52.95
OCTOPUS Cable -
6 8 Conductor Modular Plugs
with a
FEMALE
AMP Connector
WECO 568B Wiring
Part Number:
MMA1N Price: $52.95
CRITICAL+™ SOLID WIRE MODULAR CORDS
 |
Critical+™
Solid
Wire Modular Cord
15' Long - Wired Straight
Through
The Handiest Thing You
Can Have In Your Case!
Cut them in-half to
get 2 Cords
Telephone
Gray Color to Match
the Wiring at the Frame
|
 |
|
2 Pair |
You can't
punch down stranded cable! |
4
Pair |
2 Pair, 3 Pair and 4 Pair Cords.
Carry some of these in your truck!
You can make solid wire modular cords yourself,
but this has got to be faster, easier and cheaper!
These are professionally made, and tested (which is why there's a mod plug on both ends).
Connect a modular device to a 66 or 110 Block, beanie it on to an existing wire...
Or lots of other uses that make these a must have in your truck!
Make your own Octopus Cable:
By plugging these Critical+ Solid Wire Cords into the mod jacks on a phone system, gateway, ATA or other modular device, you can tie wrap them in a bundle towards the 66 Block, where it will look neat when you cut the wires down. With an Octopus Cable, you'll have extra wire for each of the mod cords, so your installation will look like a mess unless you spend a lot of time dressing the cable (somehow?).
2 PAIR 15 FOOT SOLID WIRE
CORD
White/Blue and White/Orange
pairs wired Straight Through to four pin modular plugs, so you
can cut it in-half and get two 7.5 foot cords.
This CAT3 solid wire
cord is wired with USOC wiring, with White/Blue on the middle
pins, and White/Orange on the outside pins.
Part Number: SWI3A Price:
$3.95
3 PAIR 15 FOOT SOLID WIRE
CORD
White/Blue, White/Orange
and White Green pairs wired Straight Through to six pin
modular plugs, so you can cut it in-half and get two 7.5 foot cords.
This CAT3 solid wire
cord is wired with USOC wiring, with White/Blue on the middle
pins, White/Orange on the next two pins out, and White/Green
on the outside pins.
Part Number: SWI3B Price:
$4.89
4 PAIR 15 FOOT SOLID WIRE
CORD - WIRED WECO (568B)
White/Blue, White/Orange,
White/Green and White/Brown pairs wired Straight Through
to an eight pin modular plug, so you can cut it in-half to get two
7.5 foot cords.
This CAT3 solid wire
cord is wired with WECO wiring (568B), just like a patch cord for
Ethernet.
Part Number: SWI3C Price:
$5.95
CROSS CONNECT WIRE (Jumper Wire)
1, 2 and 3 Pair
Cross Connect Wire
Various Colors
Available in 1 Pair Jumper Wire
With Tight
Twists!
1 Pair Cross Connect
Wire
1,000 Foot Reel
Colors:
-
White/Blue
- Part Number: SER6C
-
White/Red -
Part Number: SER6J
-
White/Orange - Part Number:
SER6K
-
Yellow/Blue -
Part Number: SER6O
Price: $39.95
2 Pair Cross Connect
Wire
1,000 Foot Reel
White/Blue -
White/Orange
Part Number: SER6D Price:
$74.95
3 Pair Cross Connect
Wire
660' Reel -
Not 1,000 Feet!
White/Blue -
White/Orange - White/Green
Part Number:
SER6E Price:
$124.95
CROSS CONNECT WIRE HOLDER
Holds 1, 2 or 3 Pair Cross Connect Wire
One or more of these will really speed
up making a frame!
Unscrew it when you're done and take
it with you!
Part Number: HND3S Price: $8.95
|
Click me to go to
|
|
Click me to go to
|
 |
|
 |
|
|
|
CAT5 and CAT6 Jacks |
|
Low Voltage Mounting
Plates & Template, and Wire Running Tools |
Now
In-Stock!
